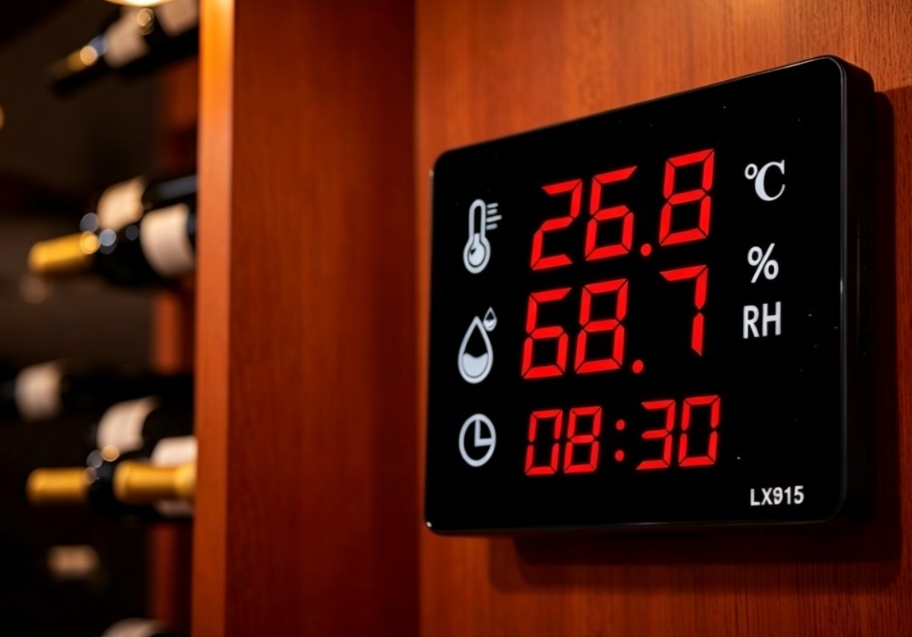

How to Choose the Right LED Backlight for Industrial Devices

In the tough field of industrial automation and process control, a clear display on an instrument can make a real difference. It affects safety and how accurately data is read. LIGHTBO has been making LED display products since 2006. The company knows that industrial tools need backlighting that holds up under rough conditions and keeps working steadily. Whether the project involves a digital pressure gauge, a temperature controller, or a power grid monitor, picking the right LED backlight forms the base for a dependable user interface.

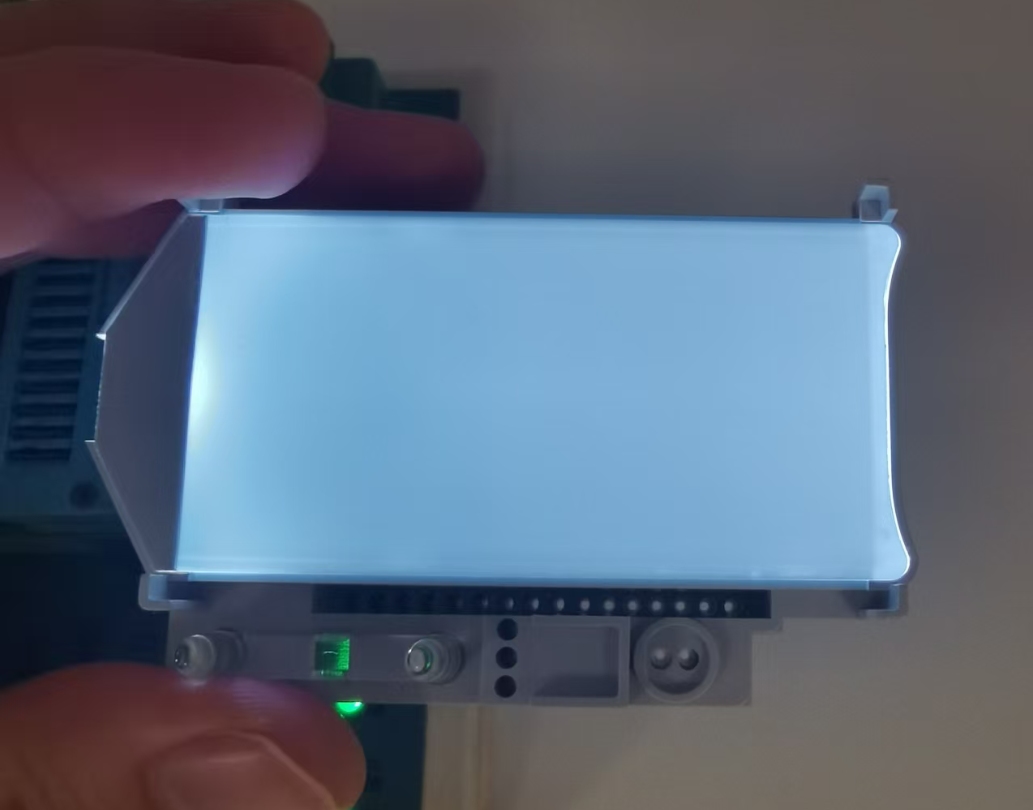

Analyzing the Industrial Operating Environment

You should look closely at the conditions the instrument will face before choosing any parts. Industrial sites differ greatly from regular consumer settings. They need components built for long-term reliability in demanding situations.

Thermal Stability and Temperature Ranges

Industrial instruments often work in very hot or cold places, from outdoor stations in freezing weather to control panels near furnaces.

• Wide Operating Spectrum: Good industrial backlights need to function well from -40°C to +85°C. This prevents failures when starting up in cold areas or dimming in heat.
• Heat Dissipation Design: LIGHTBO uses better materials so the warmth from the LEDs does not harm the internal circuits or the liquid crystal part of the display.
• Prevention of Light Decay: High heat speeds up aging in LED chips. The designs focus on steady heat control to reach lifespans around 100,000 hours in real use.

Optical Clarity and High-Contrast Requirements

Being able to see the display clearly matters a lot in factories where lighting can change from almost dark control rooms to bright sunlight on the floor.

• Luminous Uniformity: Quality backlights spread light evenly over the whole screen area. This stops bright spots that hide important numbers or readings.
• High Contrast Ratios: Strong, steady light from LIGHTBO backlightsimproves LCD contrast, sometimes reaching ratios as high as 1,000,000:1 for easier reading.
• Color Fidelity: On instruments that use colors for alerts, such as red for problems and green for normal status, the backlights support a wide NTSC color range up to 118%. This keeps colors looking accurate.

Technical Criteria for Backlight Selection

Choosing a backlight means looking at different structures and power setups that fit the instrument’s size and shape limits.

Edge-Lighted vs. Direct-Lit Technology

The way the backlight is built affects how thin the final instrument can be and how steady the light stays.

• Slim Profile Design: LIGHTBO edge-lighted LED backlights help make instruments much thinner. This works well for portable diagnostic tools that technicians carry around.
• Stable Instrument Lighting: Edge-lighting uses a light guide plate to turn individual LED points into smooth, even surface light. This suits precision meters where every detail counts.
• Durability: These flat structures handle vibration and shocks better, which comes up often in heavy machinery like pumps or motors.

Energy Efficiency and Power Consumption

For equipment that runs on batteries or needs to save power, the backlight’s efficiency affects how long the device can operate.

• Low Power Demand: LIGHTBO LED backlights use over 40% less energy than older CCFL types.
• Low Voltage Safety: They run on 5V to 24V DC. This makes the power supply simpler and safer in work areas.
• Instant Response: LEDs reach full brightness right away. Unlike older lights that need time to warm up, the information shows immediately when the instrument turns on.

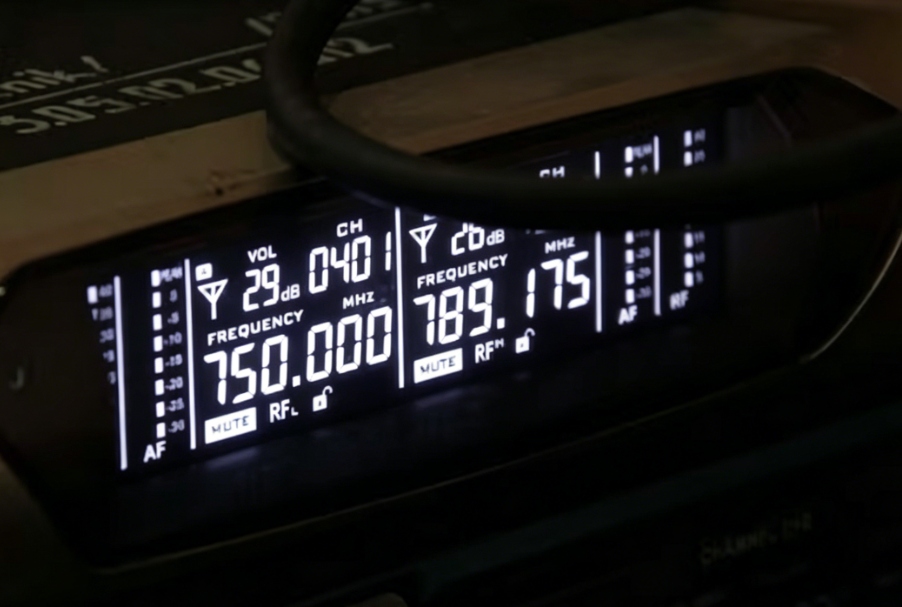

Integrating Backlights with Digital Displays

A backlight works together with the display type, such as 7-segment or alphanumeric, to form one complete module.

Synergizing with 7-Segment and Alphanumeric Displays

How the light and display segments work together decides how easily a technician can read numbers from several feet away.

• Full Range Compatibility: LIGHTBO offers backlighting that fits well with their 7-segment displays, from single digits up to six, and alphanumeric types with 14 or 16 segments.
• Ultra-Bright White Options: For equipment like ovens or industrial heaters, ultra-bright white versions cut through dark covers for clear viewing.
• Custom Digit Heights: Whether a project needs standard 0.56-inch digits or larger ones for warehouse monitors, the backlighting adjusts to keep lighting even.

Customization for Specialized Instrument Interfaces

Standard parts sometimes do not meet the needs of fields like new energy or medical testing.

• Application-Specific Solutions: LIGHTBO creates custom options for UPS systems, refrigerators, and electric scooters. The backlight matches the exact shape and layout of each device.
• Multicolor Customization: They can make backlights that change color according to the instrument status. This gives operators a quick visual signal without reading every number.
• Capacitive Touch Integration: For newer smart instruments, the company builds modules that combine backlighting with touch interfaces.

The LIGHTBO Advantage in Industrial Solutions

Working with LIGHTBO means getting support from a manufacturer focused on practical solutions and steady improvements for industrial needs.

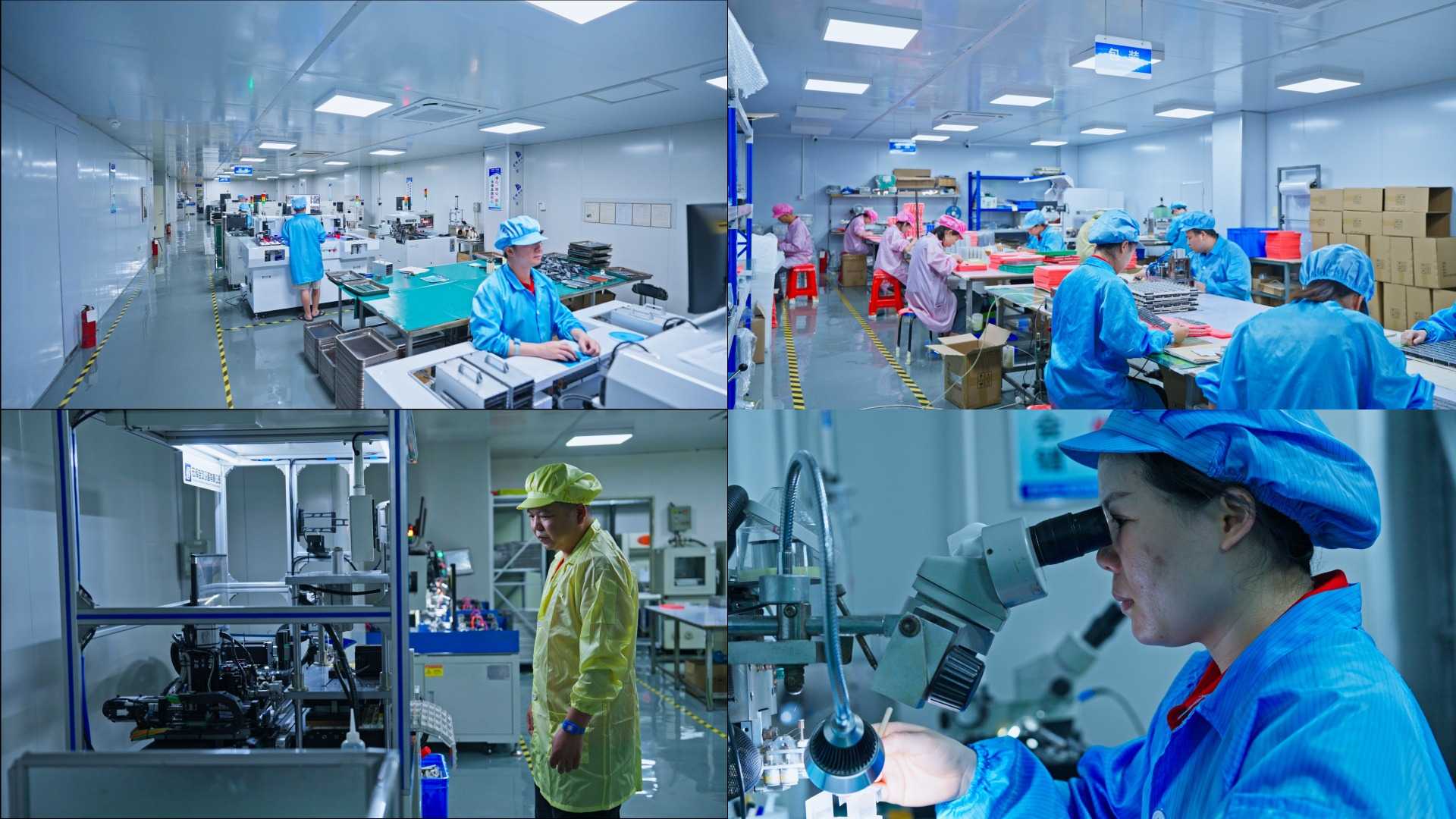

Advanced Manufacturing and Quality Assurance

Quality comes from careful testing and modern production methods.

• Strict Quality Control: LIGHTBO runs its own test lab and holds RoHS certification plus the Trust Seal. This confirms that parts meet environmental rules and perform reliably.
• Automated Production: Since 2016, advanced machines and testing equipment have reduced mistakes and supported large orders with consistent results.
• ISO 9001 Standards:The quality system has followed ISO 9001 since 2015, giving confidence to clients around the world.

Comprehensive ODM/OEM Support Services

LIGHTBO does more than supply parts. They help clients improve designs, lower costs, and strengthen their products.

• Internal Design Team: The in-house engineers collaborate with customer teams to create the exact display and backlight combination needed.
• Solution Optimization: They suggest material choices and thermal setups that cut expenses while keeping performance high.
• Strategic Cooperation: With nearly twenty years in the field, LIGHTBO has built strong ties with major global companies. This experience helps deliver on complex industrial projects.

Conclusion

Picking the right LED backlight for industrial instruments means finding the proper mix of good light quality, ability to handle tough conditions, and fit with the mechanical design. LIGHTBO provides high-quality, advanced components supported by a team familiar with real industrial challenges.

Ready to improve the display on your instruments? Contact LIGHTBO today to talk about your project. The team can supply quality LED displays and custom backlighting that fit your needs.

• Email: lightbo2@lightbo.cn
• Phone/WhatsApp: +86 18320538436

FAQ

Q: Why is LED backlighting preferred over CCFL for industrial instruments?

A: LEDs last much longer, up to 100,000 hours in many cases. They use less power, often saving more than 40%, and stand up better to shocks because of their solid build.

Q: How do environmental temperatures affect backlight performance?

A: High heat can shift colors and make light fade faster. Cold temperatures may cause startup problems. Industrial versions use special chips and heat management to work reliably from -40°C to 85°C.

Q: What is the benefit of “Edge-Lighted” technology in instrument design?

A: Edge-lighting creates thinner devices and spreads light more evenly across the screen. This makes it a strong choice for compact precision instruments.

Q: Can LED backlights be customized for specific sunlight-readability requirements?

A: Yes. Raising brightness levels to between 5000 and 8000 nits and using special light guide plates helps the display stay clear even in direct sunlight.
