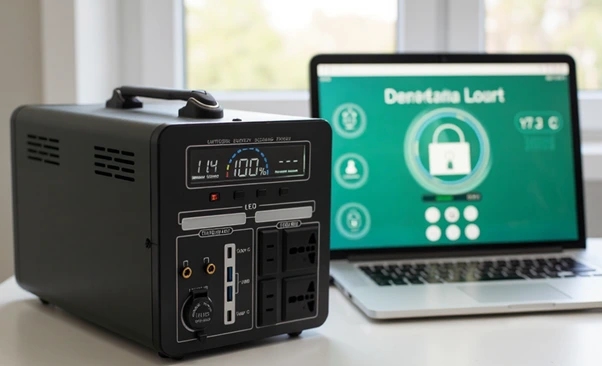

Custom Multi-Color 7-Segment LED Displays for Industrial UPS

When a data center suddenly loses grid power or a factory line runs into a voltage spike, UPS systems become the main backup. These situations leave no room for slow menu navigation on screens. Operators need clear, instant status information they can trust at a glance. LIGHTBO stands as a top global maker of advanced LED digital displays. The company develops high-performance custom multi-color 7-segment LED displays built specifically for power electronics and energy storage equipment. Adding the right colors to the hardware interface turns a regular backup power unit into something operators can read quickly during critical moments.

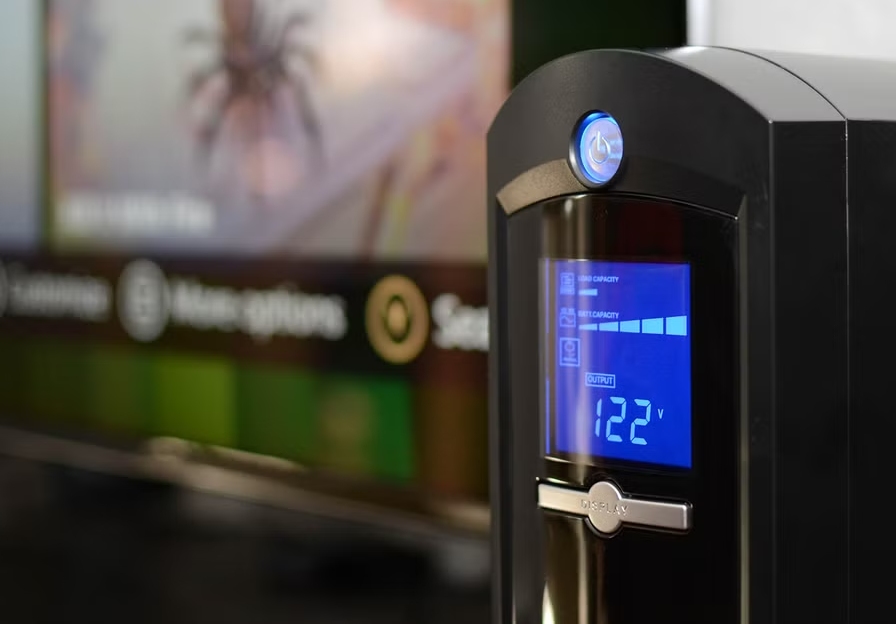

The Strategic Role of Color Coding in UPS Interfaces

Power management today relies on fast visual checks to stop expensive downtime. The proper color setup on control panels helps teams spot warnings early before minor issues grow into major failures.

Deciphering System Status with Multi-Color Matrices

A smart order of colors lets control room staff understand electrical loads in seconds.

• Green Displays: These indicate normal running states such as “Inverter Online” or “Battery Fully Charged.”
• Amber/Yellow Displays: They work as early alerts for smaller problems like battery time getting short or a light overload.
• Red Displays: These stay reserved for urgent situations, including serious faults, bypass failures, or sudden overheating.

Optimizing Human-Machine Interface (HMI) Readability

Server rooms and industrial sites have different lighting conditions. Displays must remain easy to read in all of them.

• Dark Server Rooms: High-contrast blue or strong green digits help reduce eye fatigue for technicians working in low light.
• High-Ambient Glare: Very bright white numbers cut through strong overhead lights in factories and stay visible from different angles.
• Multicolor Partitioning: Separating values avoids mix-ups during quick checks. Input voltage might appear in white, output frequency in green, and battery capacity in blue.

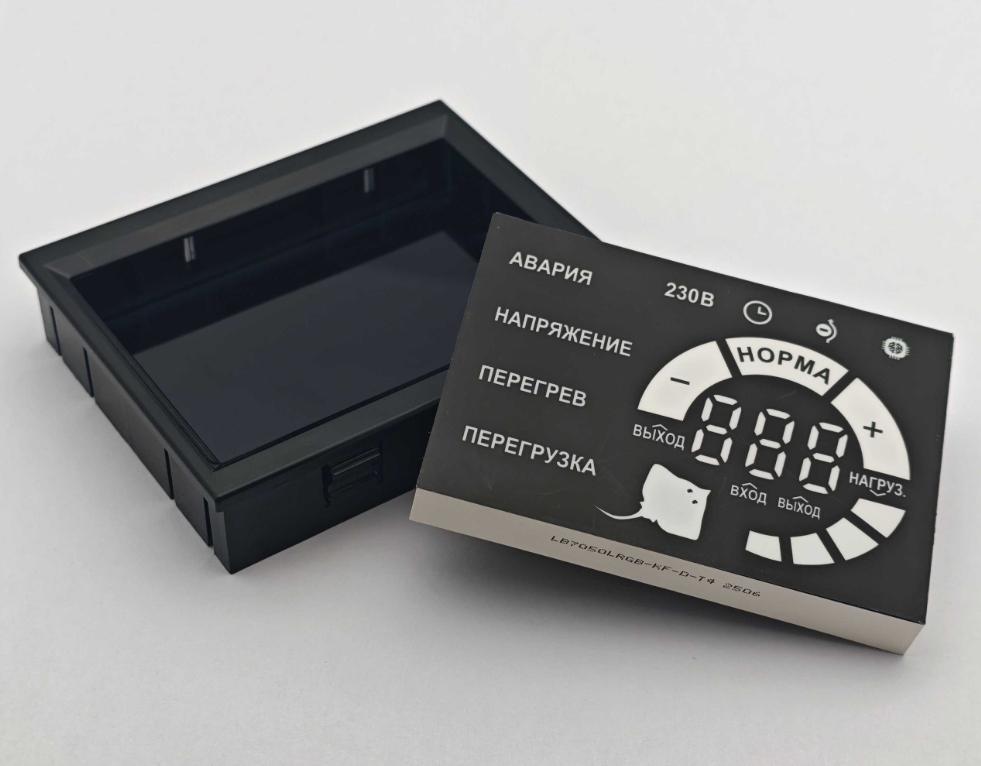

Technical Dimensions of Customizing LIGHTBO 7-Segment LED Displays

Making a solid display requires more than picking colors. It needs careful electronic design to fit existing circuits. LIGHTBO provides fully custom hardware options that integrate smoothly into current production processes.

Tailoring PIN Configurations and Drive Mechanics

Every control board has its own space limits and layout needs. These details shape the final display.

• Circuit Polarity Options: Displays come as Common Cathode or Common Anode to match driver ICs without changing the main board.
• Multiplexed vs. Direct Drive: Special internal pin setups simplify wiring and reduce the total pins needed on the microprocessor.
• Ultra-Thin Profiles: Slim dimensions allow the display to fit into tight front panels or rack-mounted systems.

Precision Wavelength Matching for True Color Output

Uniform brightness and matching colors across digits depend on tight control of the LED materials.

• Wavelength Selection: Specific LED dies, like 630nm for clear red and 525nm for pure green, create strong contrast with no color mixing.
• Binning Standardization: Careful brightness sorting keeps every segment looking even across the whole display.
• Low Current Optimization: Segments reach good brightness at lower power levels, which saves energy from the auxiliary supply.

Where LIGHTBO Solves Power Display Challenges

The real value of an LED display shows up during daily tough conditions. LIGHTBO’s focus on engineering delivers steady performance in power systems.

Mission-Critical Data Center UPS Clusters

High-density server areas run displays non-stop for years. Brightness and clarity must hold up over long periods.

• The Problem:Standard displays often lose strength after extended use, making real-time load readings and battery percentages harder to see clearly.
• The LIGHTBO Solution: Custom multi-color 7-segment displaysuse better epoxy sealing and quality chips. They stay readable after more than 50,000 hours of continuous operation.
• The Component Advantage: Added icons next to the numbers provide instant information on battery levels and power flow between the grid and the inverter.

Harsh Industrial Power Enclosures

Factory floors expose components to heat, dust, and ongoing vibration from machines.

• The Problem: Temperature swings and shaking can damage connections in regular displays, leading to missing segments and unclear error codes.
• The LIGHTBO Solution: Strong ODM/OEM processesinclude reinforced lead frames and improved soldering methods that handle physical stress well.
• The Component Advantage: Heat-resistant materials keep casings stable and colors consistent even when placed near hot transformers or power modules.

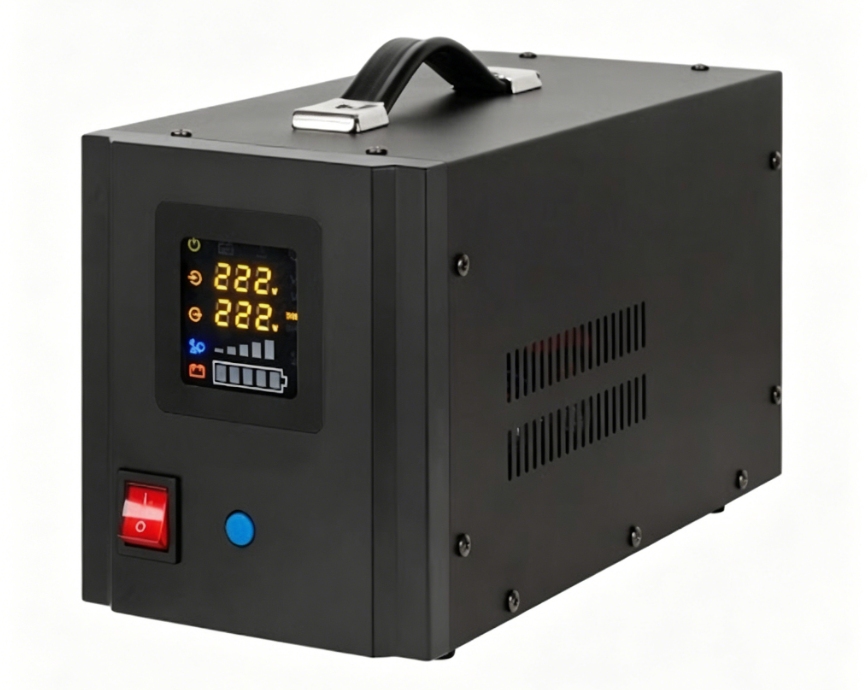

Custom Engineering and Service Tailored for Industrial Power Applications

A good product depends on solid development and manufacturing that lasts through years of heavy use.

Collaborative ODM/OEM Design Framework

No two UPS models have identical layouts or electrical setups. This makes dedicated custom engineering support essential.

• Internal Professional Design Team: They collaborate directly with client R&D teams to arrange custom pins, choose digit heights, and place warning characters.
• Advanced Machinery Workshop: This setup supports fast prototyping of enclosures and light guides, helping bring new equipment to market quicker.
• Flexible Color Combinations: Teams create mixes of white, pure green, deep blue, amber, and red on single displays to fit brand styles and safety standards.

Stringent Environmental Testing and Quality Seals

Industrial settings test electronics with humidity, dust, and electrical interference.

• ISO 9001:2015 Process Control: Every manufacturing step from material selection to final sealing gets monitored and recorded.
• Comprehensive Reliability Labs: Custom parts undergo thermal cycling, humidity aging, and vibration tests to support service life beyond ten years.
• Full Regulatory Compliance: All units meet RoHS standards for material safety in international markets.

Power Your Infrastructure with LIGHTBO

A clear, practical display forms an important part of any reliable UPS system. LIGHTBO brings years of experience, modern production facilities, and full custom ODM/OEM services to meet specific requirements. Whether the need is a slim multi-color panel for a small desktop UPS or a bright display for larger industrial units, the engineering team builds exactly to the provided specifications.

Contact LIGHTBO today at lightbo2@lightbo.cn to request technical drawings, review custom color samples, and improve the interface of your products.

FAQ

Q: Why is luminous intensity binning critical when configuring multi-color 7-segment LED displays for a UPS?

A: Different colored LED chips, like red, green, and blue, naturally give different brightness levels at the same current. Professional binning brings these levels closer so the display looks balanced. No color stands out too much or fades away.

Q: What are the advantages of using a Common Cathode versus a Common Anode configuration in power supply panels?

A: The choice depends on the drive circuit in the system. Common Cathode often saves power with low-voltage logic chips. Common Anode works well with traditional open-collector drivers found in many older industrial setups.

Q: Can multi-color LED displays reliably handle the ambient heat generated inside power inverter cabinets?

A: Yes, when made with proper materials. Quality displays use strong polymer casings, special epoxy, and gold-wire bonding. They handle temperatures up to 85°C without color changes or cracking.

Q: How do custom 7-segment LED displays compare to LCD or OLED screens for industrial UPS applications?

A: LED displays react faster in extreme temperatures. They provide wider viewing angles and longer service life. They also deliver higher brightness and avoid burn-in problems even when showing fixed numbers for years.
