Custom LED Display Design: The LIGHTBO 5-Step Success Map

In the busy field of industrial product design, the display screen does more than show data; it serves as the key link between a user and the device. This holds true for the clean control panel on a smart kitchen gadget or the clear dashboard in an industrial power setup. The accuracy of an LED display can shape how people view the product’s overall quality. That said, turning an initial drawing into a working, tough prototype takes more than basic production skills—it calls for a partner with solid technical know-how.

LIGHTBO, founded in 2006, has dedicated almost 20 years to refining custom LED production. Our guiding idea, “Pursuing Excellence, Building Success Together,” shapes a clear 5-step method. This approach clears up technical hurdles and supplies strong display options for business clients around the world.

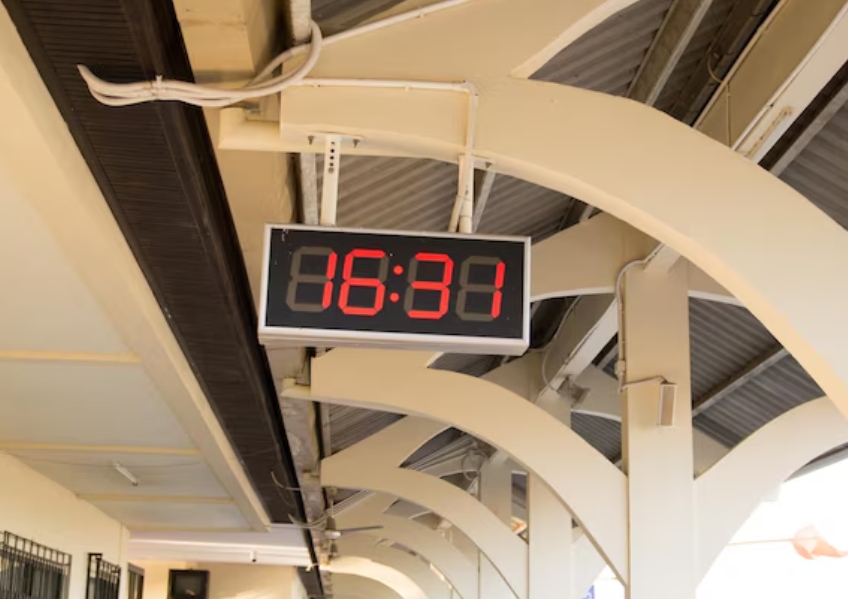

The 5-Step Development Roadmap

To bridge the strategic vision of our company with the practical steps of production, we have refined a workflow that balances creative design with engineering precision. This roadmap ensures that every custom project transitions seamlessly from an abstract idea to a high-performance component ready for the global market.

Phase 1: Conceptual Consultation & Technical Mapping

The journey starts with a close look at the exact setting where the display will work. Unlike ready-made parts, a LIGHTBO custom LED display gets built for a clear goal.

In this first part, we review:

• Environmental Constraints: Will the display deal with intense heat in an oven or heavy moisture in a medical sterilizer?
• Optical Requirements: We set the needed light strength and color range so the display stays readable in bright sun or dim room light.
• Space Optimization: For small tools like e-cigarettes or portable meters, we suggest our Multicolor Ultra Thin 7-Segment LED Displays. These fit well into tight spaces.

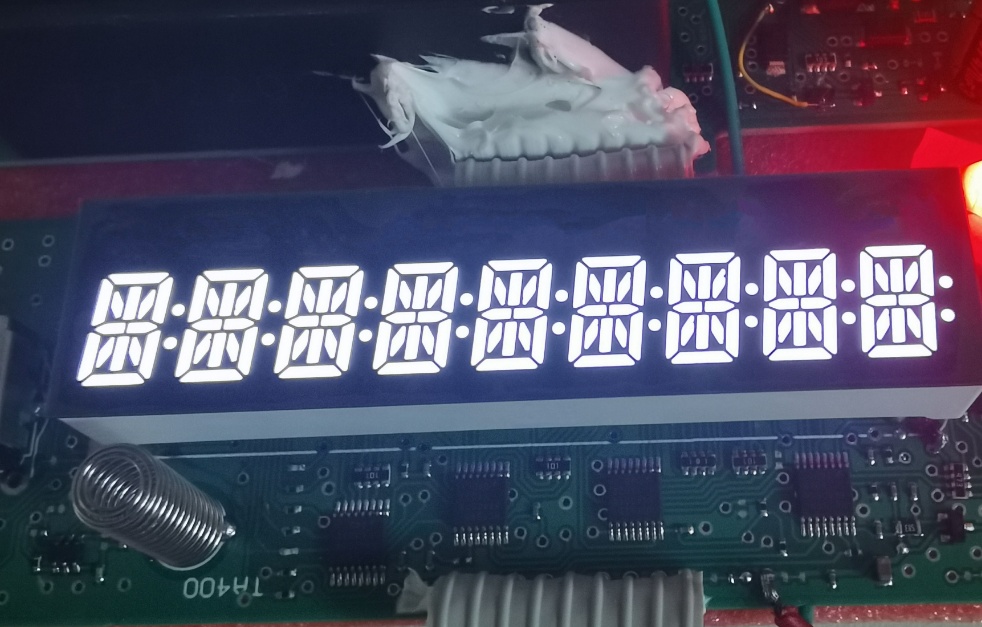

Phase 2: Structural Design & Customized Circuitry

With the basics in place, our in-house designers turn those details into detailed plans. Here, the custom side of LIGHTBO really stands out. We go beyond basic numbers by adding tailored symbols, special Alphanumeric LED segments (14 or 16 segments), and distinct letter styles right into the circuit board setup.

This part tackles typical design issues:

• Pin Configuration: We align the display’s connections with your current circuit board, which avoids expensive changes to your main control unit.
• Interface Logic: We add targeted chips to run the display straight, which streamlines the link between the display and your processor.

Phase 3: Material Selection & Performance Tuning

A display’s strength comes from its inner parts. LIGHTBO draws from a tight supply network to pick top-tier LED chips and covering materials.

• Chip Performance: We choose chips with steady color matching, so in a run of 10,000 pieces, the “Pure Green” on the first matches the one on the last.
• Backlight Precision: For detailed screens, we use side-lit LED backlight methods to spread even light over the whole surface. This avoids bright patches that might make a product seem low-end.

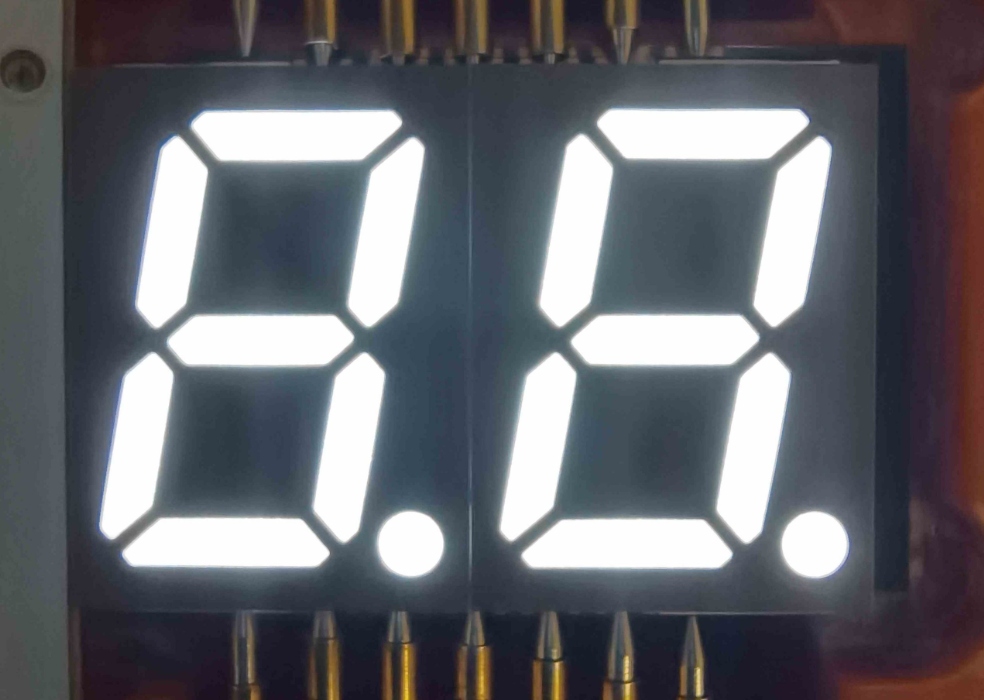

Phase 4: Rapid Prototyping & Stress Testing

Prior to full output, we build working models and run them through strict checks in our test facility. The models face a range of trials, such as heat shifts, shake resistance, and long-run checks.

This phase matters for fixing everyday issues:

• Durability: We check SMD LED displays for holding during the hot soldering step in assembly.
• Reliability: We confirm thatsegment LED displays keep full segment function after thousands of hours in steady use.

Phase 5: Automated Mass Production & Quality Control

The last stage shifts to our modern equipment area. LIGHTBO relies on automatic machines and firm production steps to hit ISO 9001 quality marks for each item. Our check system uses automatic light scans (AOI) to spot any mismatch from the set specs right away.

Solving Industry Challenges Through Application

Our methods do real work; they handle screen problems in key fields:

Smart Home Appliances

In kitchen tools, clear viewing and heat tolerance top the list. LIGHTBO supplies Ultra Bright White Custom 7-Segment Displays for upscale ovens. We also offer 3-digit displays tuned for the cool spots in new refrigerators. With our tailored white LEDs, makers can create a sharp, fresh look that sets their item apart in stores.

New Energy & Industrial Power

In the new energy area, like EV charging points or solar converters, screens need to read well outside and handle power spikes. Our LED digital display options for energy focus on strong contrast and sturdy electrical links built for tough industrial settings.

Medical and Precision Instrumentation

Lab settings demand spot-on data views. Our Alphanumeric LED Displays support plain, multi-language notices and detailed readouts, which cut down on mistakes in vital tasks.

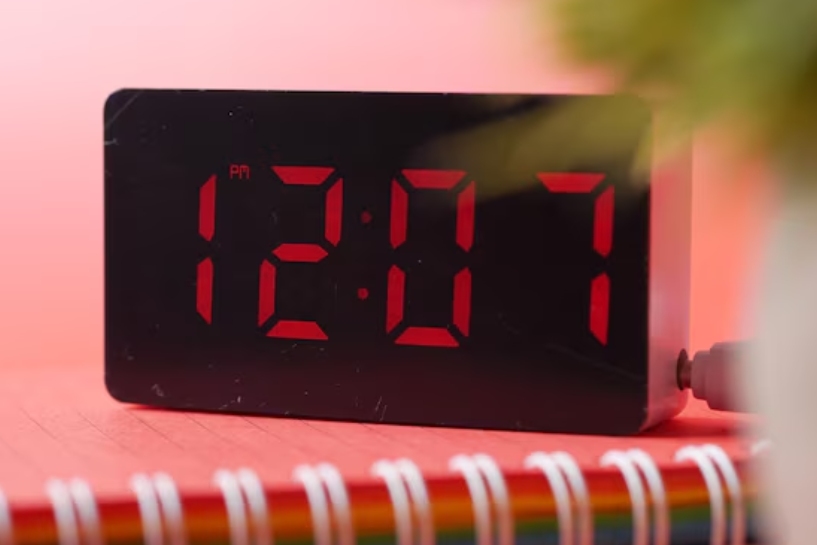

Partner with LIGHTBO for Your Next Innovation

Building a custom display should not feel risky. With LIGHTBO, clients get a focused design group, cutting-edge automatic production, and a focus on quality that matches your goals. From the starting drawing to the end model and further, we offer the tech support your brand needs to thrive.

Ready to bring your display concept to life?

Contact the LIGHTBO today or email us at lightbo2@lightbo.cn to receive a technical consultation and quote for your custom project.

FAQ

Q: What is the main benefit of choosing a custom LED display over a standard off-the-shelf module?

A: Customization allows you to tailor the size, color, icons, and pinout to your specific product, ensuring perfect integration, unique branding, and optimized performance for your specific environment.

Q: How does LIGHTBO ensure color consistency across large production batches?

A: We use strict chip binning and high-quality encapsulation materials, supported by an automated quality control system that monitors color coordinates and brightness levels throughout the production run.

Q: Can LIGHTBO assist in the early design phase if we only have a rough concept?

A: Yes. Our internal design team specializes in helping customers optimize their solutions and reduce costs by providing technical feedback on layouts and material selection during the conceptual stage.

Q: What certifications do LIGHTBO products carry for international markets?

A: Our manufacturing facility is ISO 9001 certified, and our products undergo RoHS testing and supplier capability assessments to ensure they meet global safety and environmental standards.
