Three Digit
Description :
Product Description:

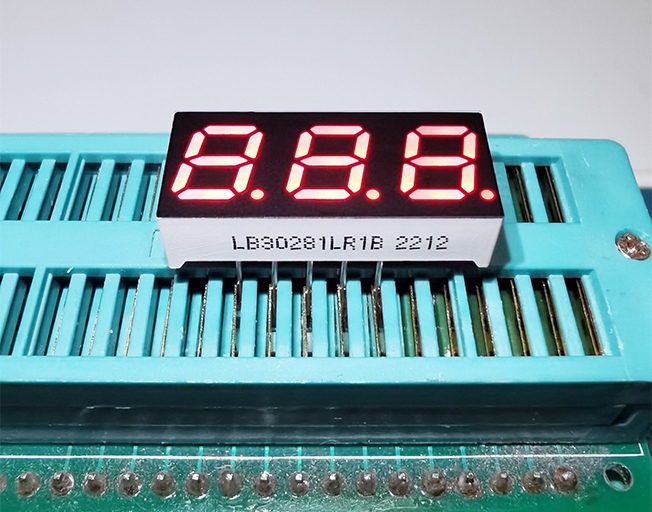

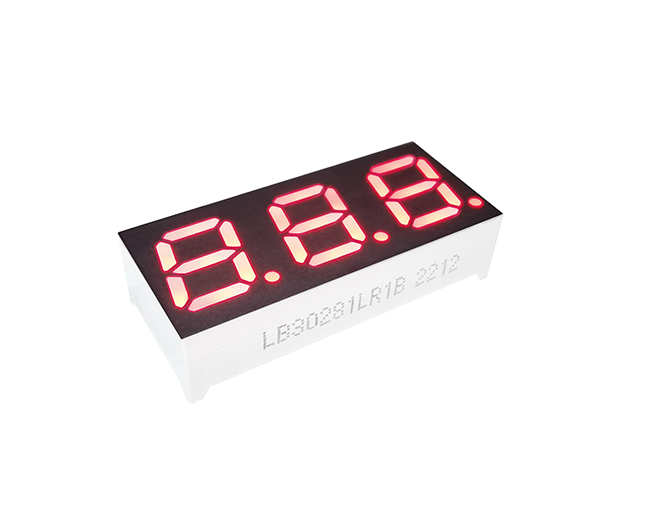

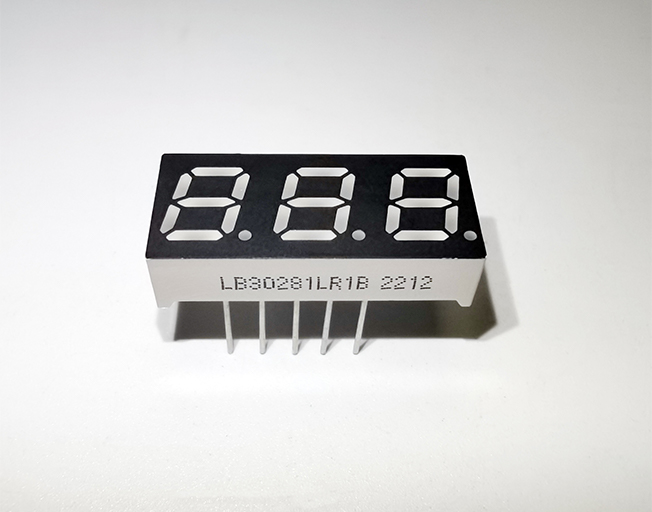

Ultra Bright Red 3 Digit 7 Segment LED Display 0.28inch Common Cathode For Small Home Appliance
Specification of Segment LED Displays
|
Product Name |
0.28 Inch 3 Digit Seven Segment LED Display |
Other Optional |
|
Part NO. |
LB30281LR1B |
Can print your part number |
|
Digit number |
3 digit |
1digit,2digits, 4digits,5digits,6 digits |
|
Digit height |
0.28 inch |
0.25,0.36,0.39….5.0(inch) |
|
Color |
RED |
White, blue,pure green, yellow-green, orange,etc. |
|
Size |
22.53*10*6.1mm |
Other size are supported |
|
Polarity |
Common Cathode |
Common Anode |
|
Life span |
80000hours |
/ |
|
Free Samples |
supported |
/ |
|
Lead time for sample |
5-7 working days |
Tooling samples are 15-20 working days |
|
Lead time for formal order |
15-20 working days |
According to order quantity |
|
OEM&ODM |
Support |
Based on customer’s drawing or idea |
|
LOGO printing |
Support |
Based on customer’s drawing or idea |
|
MOQ
|
1000PCS |
Can accept 100-500pcs for first order |
Color:Red
|
Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=20mA |
1.8 |
/ | 2.3 | V |
|
Reverse Voltage |
Vr |
Ir=10uA |
/ | 5 | / | V |
|
Luminous Intensty |
Iv |
If=20mA |
25 |
/ |
35 |
mcd |
|
Spectrum With Of Half Value |
λ |
If=20mA |
/ | 20 | / |
nm |
|
Wavelength
|
Dλ |
If=20mA |
625 |
/ | 630 |
nm |
Absolute Maximum Ratings(Ta=25℃)
|
Parameter |
Symbol |
Ratings |
Unit |
|
Forward Current(per dice) |
Ipm |
20 |
mA |
|
Reverse Voltage(per dice) |
Vr |
5 |
V |
|
Power Dissipation(per dice) |
Pm |
80 |
mW |
|
Operating Temperature Range |
Topr |
-40~+120 |
℃ |
|
Storage Temperature Range |
Tstg |
-40~+120 |
℃ |
|
Solder Temperature(3 sec) |
Th |
260 |
℃ |
Feature of Segment LED Displays
— White segment Black surface
— High luminous intensity
— Low current operation
— Stable performance
— Continuous uniform segments
— Easy mounting on PCB
— IC compatible
— RoHS compliant
Application of Segment LED Displays
— Audio Equipment or instrument panels;
— General using for digital indicators;
— Multimedia products;
— Bank exchange rate display;
— LED clock display;
— Display for gas station and other various display areas of equipment/machine.
Industrial Equipment
Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems
