Temperature Control LED Display
Description :
Quick Detail of Segment LED Displays
- We can supply you all kinds of 7 segment LED display:
— Digit size: from 0.25″ to 20″
— Digit Numer: 1, 2, 3, 4, 5 and 6 digits
- Segment : 7 segment, 14 segment and 16 segment both available
- Available Emitting color: Red, Yellow-green,green, blue, yellow, pink, white, bi-color
- Available surface color: black,gray or red

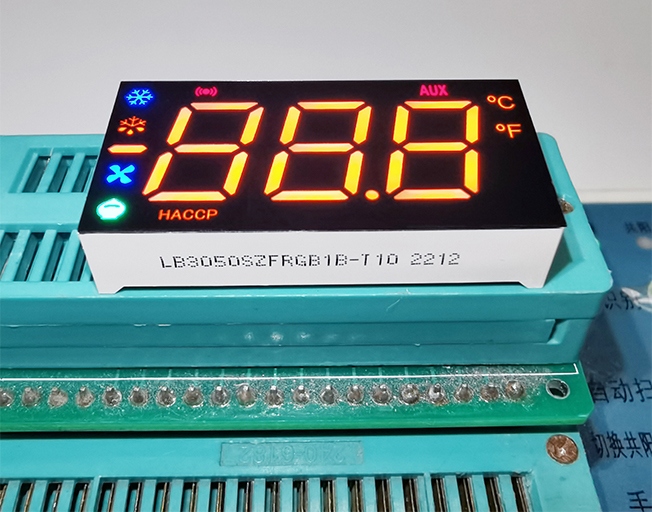

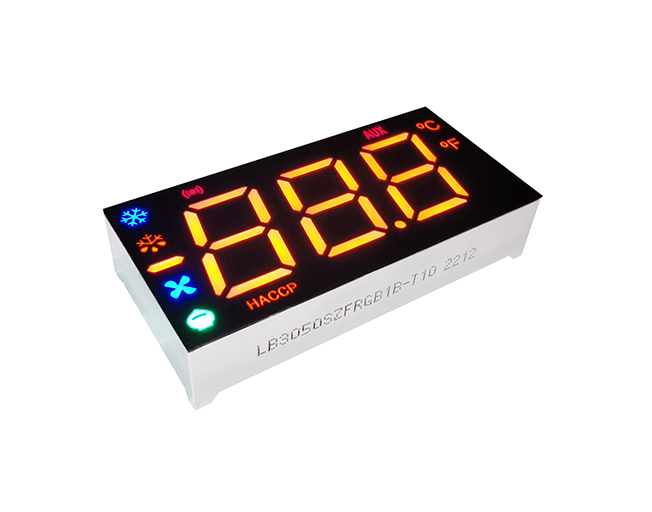

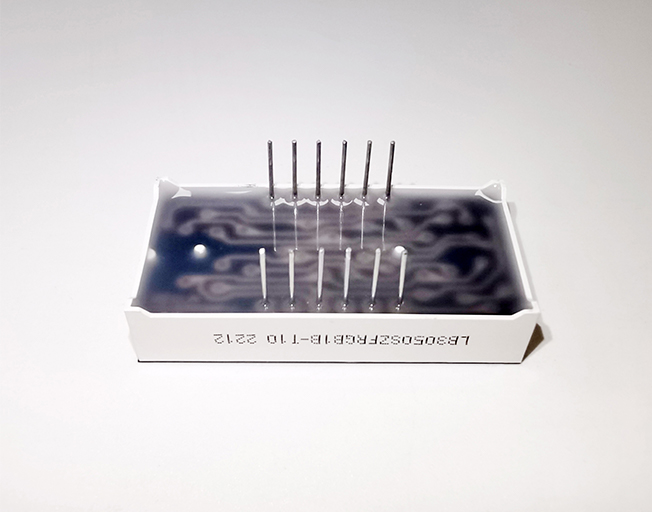

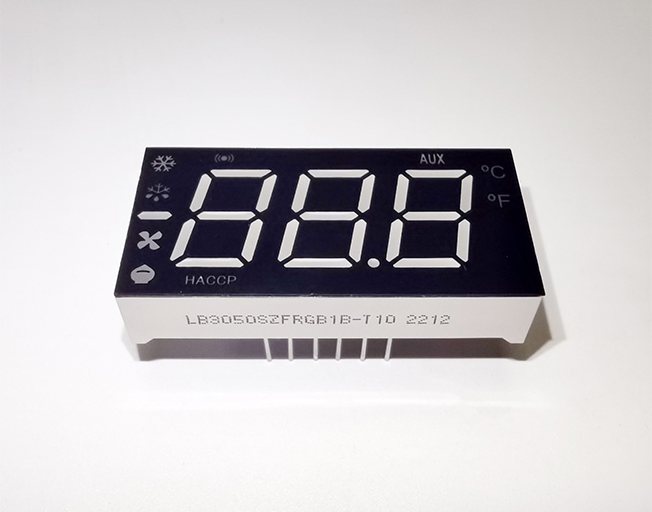

Customized Multicolor 3Digit 0.5” Seven Segment LED Display For Refrigerator Control
Specification of Segment LED Displays
|
Product Name
|
0.5 Inch 3 Digit Seven Segment LED Display
|
Other Optional
|
|
Part NO.
|
LB3050SZFRGB1B-T10
|
Can print your part number
|
|
Digit number
|
3 digit
|
1digit,2digits, 4digits,5digits,6 digits
|
|
Digit height
|
0.5 inch
|
0.25,0.36,0.39….5.0(inch)
|
|
Color
|
Multicolor
|
Red, blue,pure green, yellow-green, orange,etc.
|
|
Size
|
30*50*8mm
|
Other size are supported
|
|
Polarity
|
Common Anode
|
Common Cathode
|
|
Life span
|
80000hours
|
/ |
|
Free Samples
|
supported
|
/ |
|
Lead time for sample
|
5-7 working days
|
Tooling samples are 15-20 working days
|
|
Lead time for formal order
|
15-20 working days
|
According to order quantity
|
|
OEM&ODM
|
Support
|
Based on customer’s drawing or idea
|
|
LOGO printing
|
Support
|
Based on customer’s drawing or idea
|
|
MOQ
|
1000PCS
|
Can accept 100-500pcs for first order
|
Color:Red
|
Parameter
|
Symbol
|
Condition
|
Min
|
Typ
|
Max
|
Unit
|
|
Forward Voltage
|
Vf
|
If=20mA
|
2.8
|
/ |
3.3 |
V |
|
Reverse Voltage
|
Vr
|
Ir=10uA
|
/ |
5 |
/ |
V |
|
Luminous Intensty
|
Iv
|
If=20mA
|
25
|
/ |
35
|
mcd
|
|
Spectrum With Of Half Value
|
λ
|
If=20mA
|
/ |
20 |
/ |
nm
|
|
Wavelength
|
Dλ
|
If=20mA
|
/
|
/ |
/ |
nm
|
Absolute Maximum Ratings(Ta=25℃)
|
Parameter
|
Symbol
|
Ratings
|
Unit
|
|
Forward Current(per dice)
|
Ipm
|
20 |
mA
|
|
Reverse Voltage(per dice)
|
Vr
|
5 |
V
|
|
Power Dissipation(per dice)
|
Pm
|
80 |
mW
|
|
Operating Temperature Range
|
Topr
|
-40~+120
|
℃
|
|
Storage Temperature Range
|
Tstg
|
-40~+120
|
℃
|
|
Solder Temperature(3 sec)
|
Th
|
260
|
℃
|
Feature of Segment LED Displays
— White segment Black surface
— High luminous intensity
— Low current operation
— Stable performance
— Continuous uniform segments
— Easy mounting on PCB
— IC compatible
— RoHS compliant
Application of Segment LED Displays
— Audio Equipment or instrument panels;
— General using for digital indicators;
— Multimedia products;
— Bank exchange rate display;
— LED clock display;
— Display for gas station and other various display areas of equipment/machine.
Industrial Equipment
Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems
