Product Overview

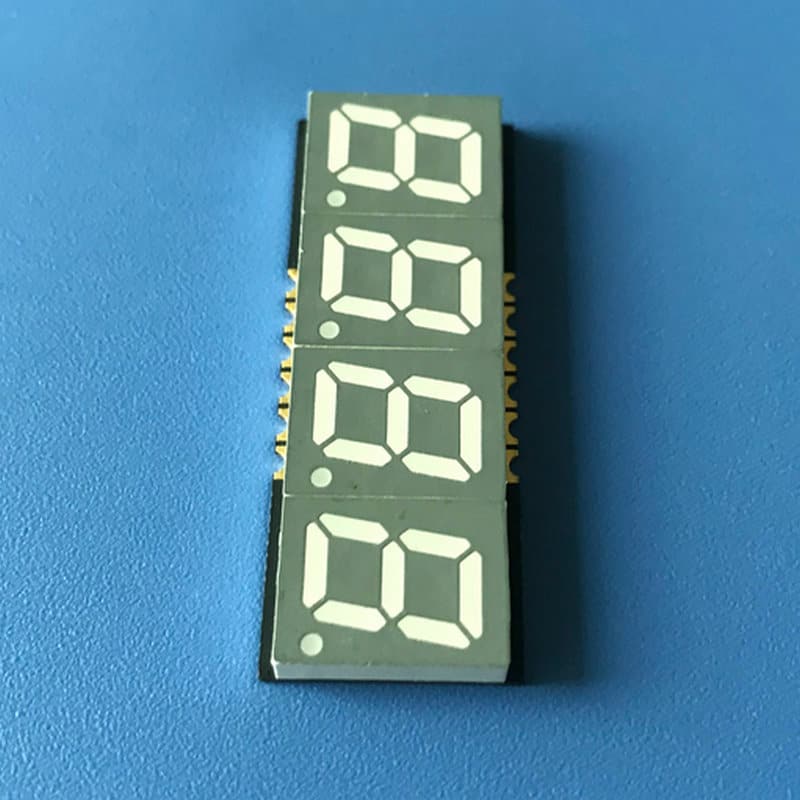

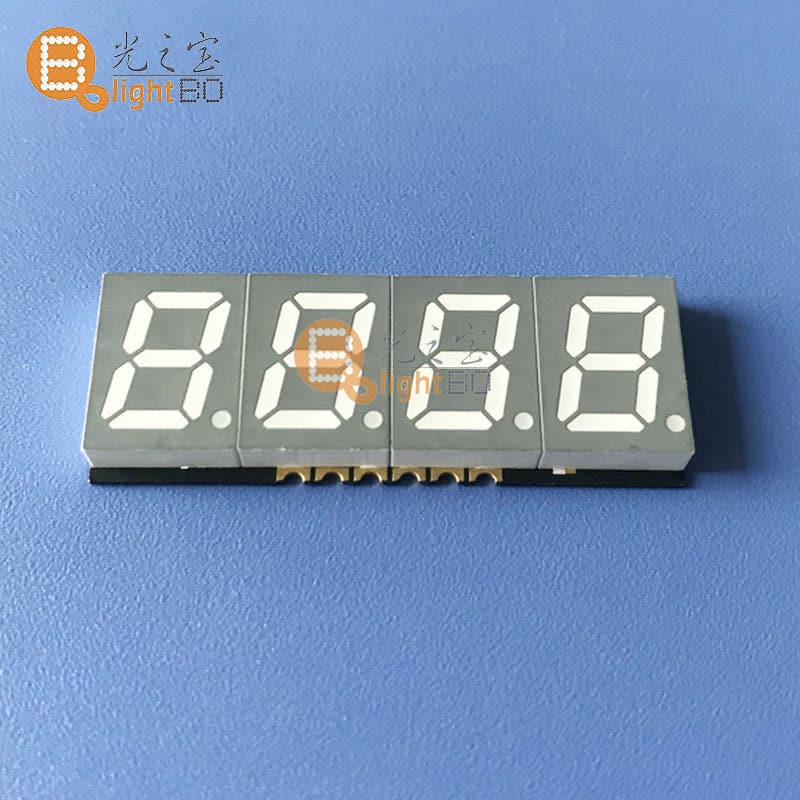

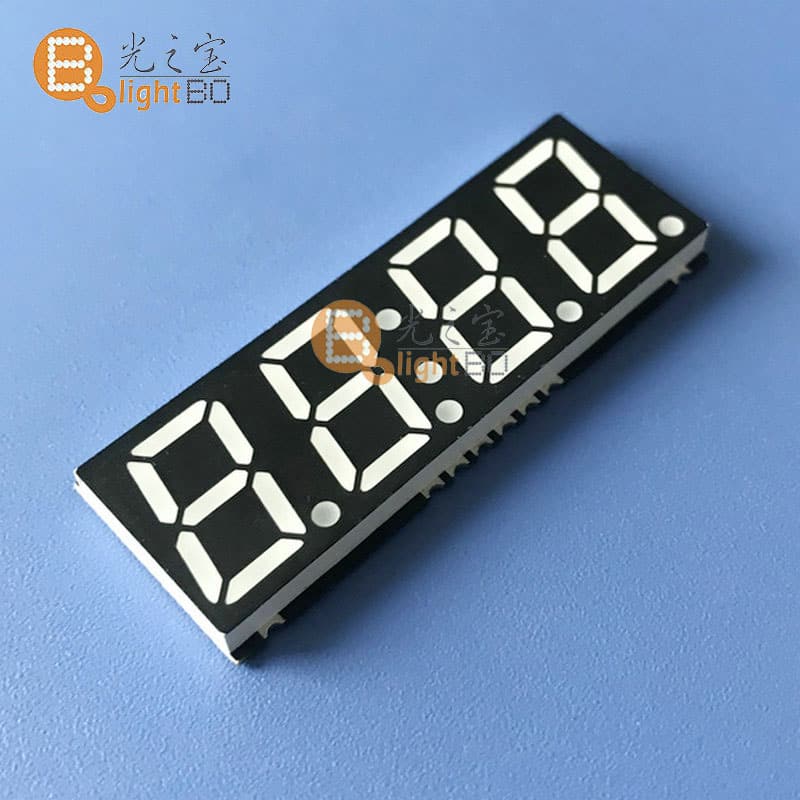

The SMD 7 Segment LED Display is a compact, surface-mount numeric indicator designed to display numeric and limited alphanumeric characters.
Built with advanced LED chip technology and SMD packaging, it offers excellent brightness, uniform color, and high reliability.
It’s ideal for industrial instruments, consumer electronics, home appliances, meters, and communication devices that require clear digital readouts.
Key Features
High Brightness & Contrast – Ensures excellent visibility even under strong ambient light.
Low Power Consumption – Energy-efficient design suitable for long-term operation.
Multiple Emission Colors – Available in red, green, blue, yellow, white, and orange.
Surface-Mount Design (SMD) – Fully compatible with automated SMT production lines.

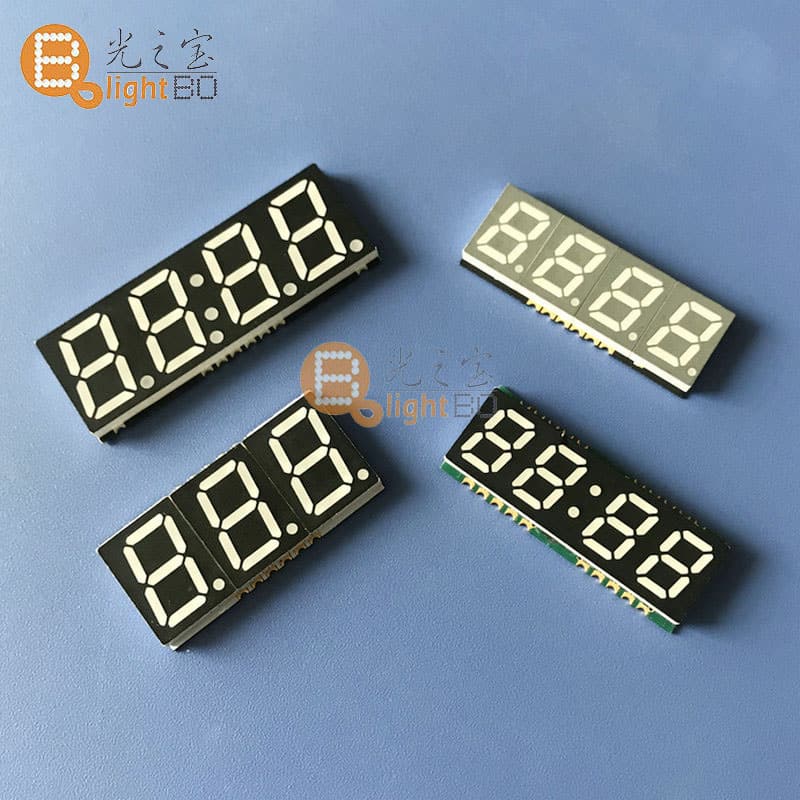

Flexible Digit Options – Available in 1-digit, 2-digit, 3-digit, 4-digit, or custom configurations.
Wide Viewing Angle – Provides clear readability from various angles.
RoHS & REACH Compliant – Environmentally friendly and lead-free materials.
Technical Specifications
| Parameter |
Typical Value |
Description |
| Package Type |
SMD |
Surface-mount design |
| Display Digits |
1–4 digits |
Customizable |
| Emission Color |
Red / Green / Blue / Yellow / White |
Optional |
| Viewing Angle |
120° |
Wide-angle visibility |
| Forward Current (If) |
20 mA |
Typical operating current |
| Forward Voltage (Vf) |
1.8 – 3.2 V |
Depends on color |
| Operating Temperature |
–40°C to +85°C |
High-temperature stability |
| Luminous Intensity |
≥ 80 mcd |
Typical brightness |
| Lifetime |
≥ 100,000 hrs |
Long service life |
Applications
🔹 Digital instrumentation and measuring devices
🔹 Home appliances (microwave ovens, washing machines, induction cookers)
🔹 Industrial control panels
🔹 Power supplies and battery chargers
🔹 Consumer electronics (timers, counters, clocks)
🔹 Medical equipment displays
🔹 Communication & network devices
Why Choose Our SMD 7 Segment Display
-
In-house LED chip packaging ensures consistent color and brightness.
-
Strict quality control with ISO9001, RoHS, and REACH certification.
-
SMT-ready design for automated mass production.
-
Fast lead times and OEM/ODM support to match customer demand.
-
Excellent cost-performance ratio for high-volume applications.
Packaging & Shipping
-
Packaging: Anti-static reel or tape for SMT assembly
-
Shipping: DHL / FedEx / UPS / Air / Sea freight available
-
Lead Time: Samples in 3–5 days; mass production 12-15 days
