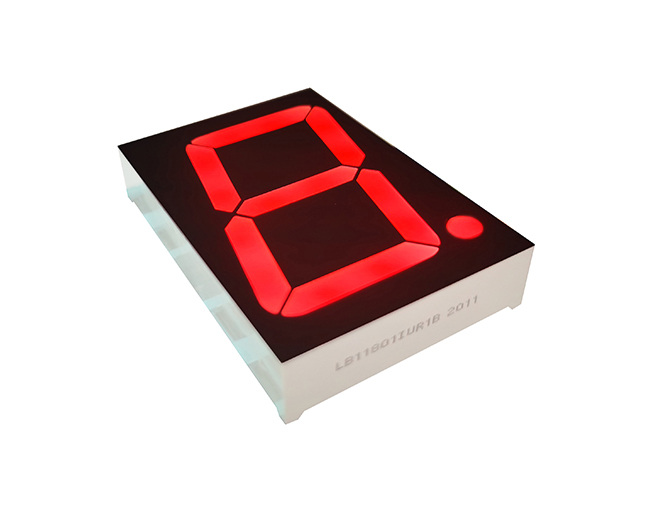

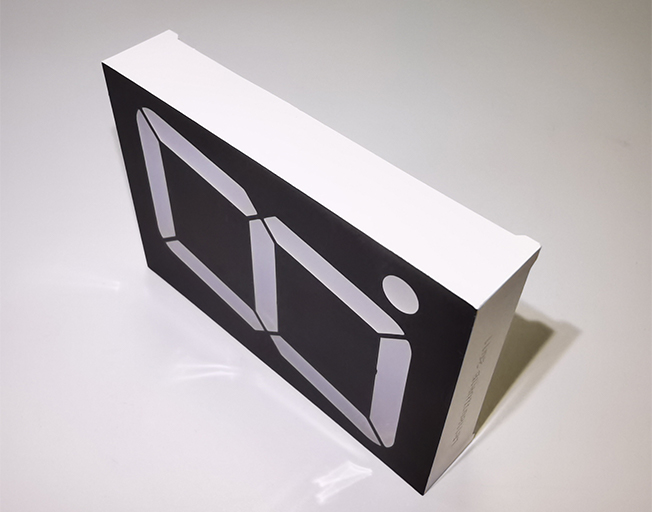

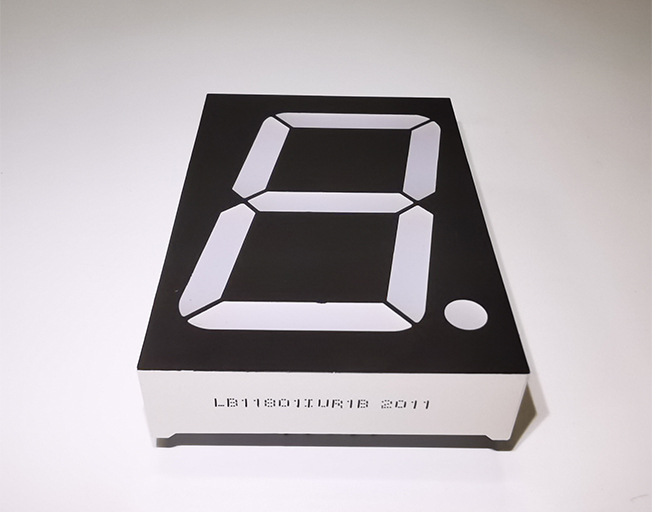

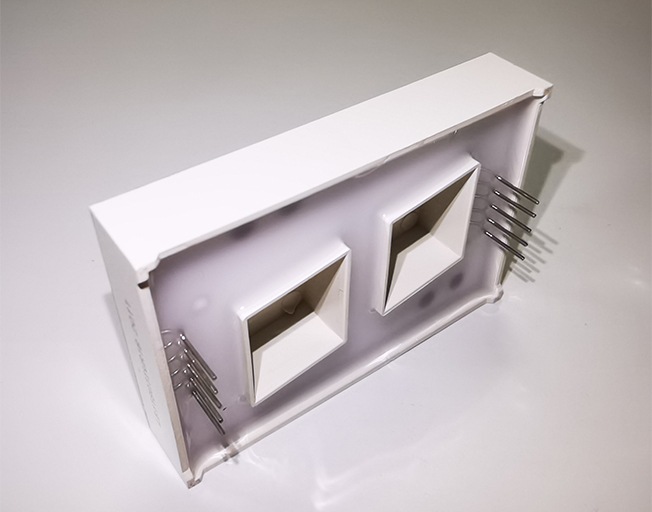

Super Bright Red Common Anode 1.8inch Single Digit 7 Segment LED Display
Specification of Segment LED Displays
|
Product Name
|
2.3 Inch 1 Digit Seven Segment LED Display
|
Other Optional
|
|
Part NO.
|
LB11801IUR1B
|
Can print your part number
|
|
Digit number
|
1 digit
|
2digits,3digits, 4digits,5digits,6 digits
|
|
Digit height
|
1.8 inch
|
0.25,0.36,0.39….5.0(inch)
|
|
Color
|
RED
|
White, blue,pure green, yellow-green, orange,etc.
|
|
Size
|
56*38*11mm
|
Other size are supported
|
|
Polarity
|
Common Anode
|
Common Cathode
|
|
Life span
|
80000hours
|
/ |
|
Free Samples
|
supported
|
/ |
|
Lead time for sample
|
5-7 working days
|
Tooling samples are 15-20 working days
|
|
Lead time for formal order
|
15-20 working days
|
According to order quantity
|
|
OEM&ODM
|
Support
|
Based on customer’s drawing or idea
|
|
LOGO printing
|
Support
|
Based on customer’s drawing or idea
|
|
MOQ
|
1000PCS
|
Can accept 100-500pcs for first order
|
Color:Red
|
Parameter
|
Symbol
|
Condition
|
Min
|
Typ
|
Max
|
Unit
|
|
Forward Voltage
|
Vf
|
If=20mA
|
1.8
|
/ |
2.3 |
V |
|
Reverse Voltage
|
Vr
|
Ir=10uA
|
/ |
5 |
/ |
V |
|
Luminous Intensty
|
Iv
|
If=20mA
|
25
|
/ |
35
|
mcd
|
|
Spectrum With Of Half Value
|
λ
|
If=20mA
|
/ |
20 |
/ |
nm
|
|
Wavelength
|
Dλ
|
If=20mA
|
625
|
/ |
630 |
nm
|
Absolute Maximum Ratings(Ta=25℃)
|
Parameter
|
Symbol
|
Ratings
|
Unit
|
|
Forward Current(per dice)
|
Ipm
|
20 |
mA
|
|
Reverse Voltage(per dice)
|
Vr
|
5 |
V
|
|
Power Dissipation(per dice)
|
Pm
|
80 |
mW
|
|
Operating Temperature Range
|
Topr
|
-40~+120
|
℃
|
|
Storage Temperature Range
|
Tstg
|
-40~+120
|
℃
|
|
Solder Temperature(3 sec)
|
Th
|
260
|
℃
|
Feature of Segment LED Displays
–White segment Black surface
–High luminous intensity
–Low current operation
–Stable performance
–Continuous uniform segments
–Easy mounting on PCB
–IC compatible
–RoHS compliant
Application of Segment LED Displays
— Audio Equipment or instrument panels;
— General using for digital indicators;
— Multimedia products;
— Bank exchange rate display;
— LED clock display;
— Display for gas station and other various display areas of equipment/machine.
Industrial Equipment
Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems
