Custom led display
Description :
Advantages:
High-luminous intensity output
High-efficiency
Low-power consumption
Extremely low-current
Luminous evenly distributed on each segment
Emitting colors: various colors avaioaboe
Product Description:

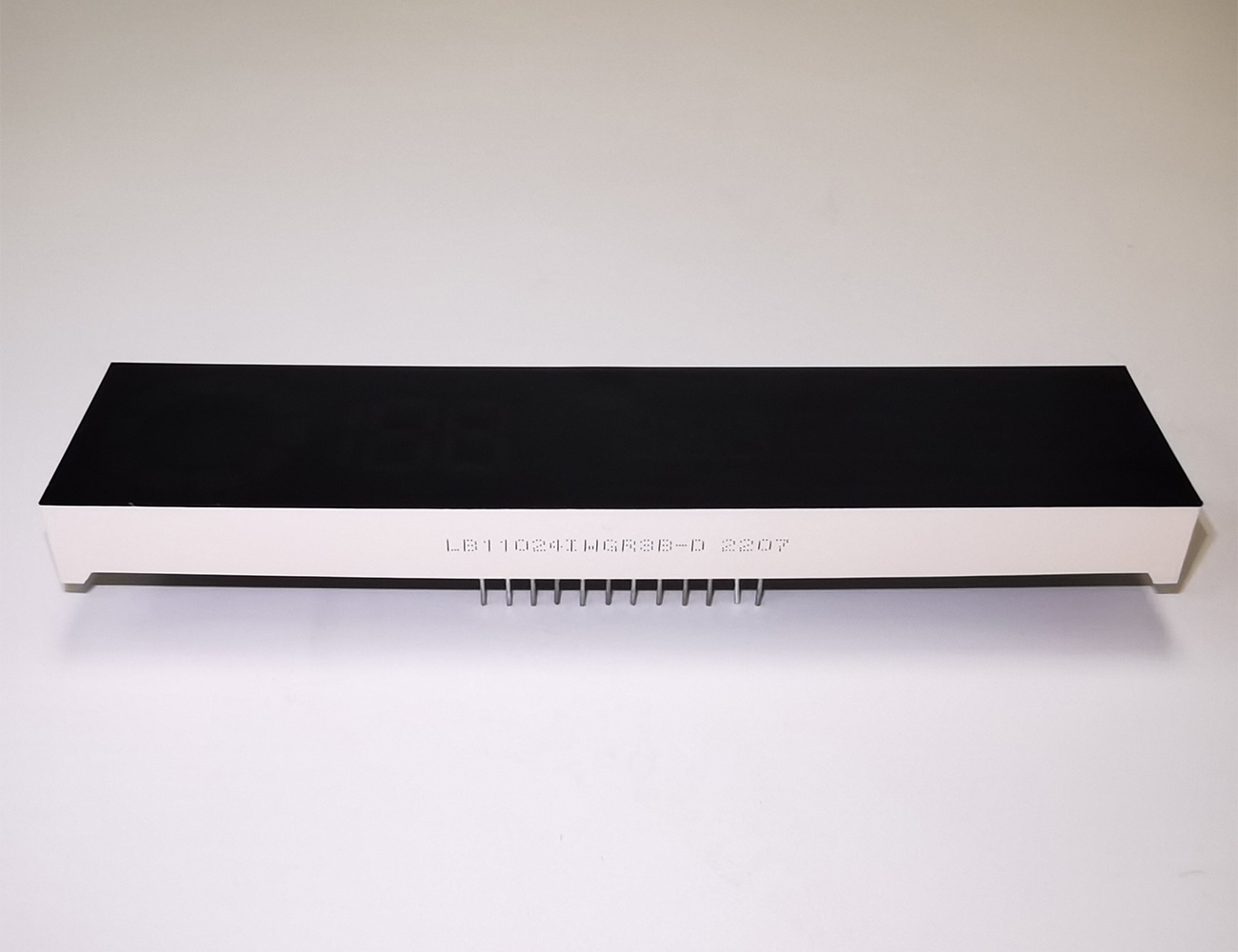

Customized White / Green / Red 7 Segment LED Display Module Common Anode For EV Charge
Code:Ultra Bright White
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 2.8 | / | 3.2 | V |
| Reverse Voltage | Vr | Ir=40uA | / | 5 | / | V |
| Luminous Intensty | Iv | If=20mA | 100 | / | 120 | mcd |
| Spectrum With Of Half Value | △λ | If=20mA | / | 20 | / | nm |
| Wavelength | Dλ | If=20mA | 625 | / | 635 | nm |
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40～+120 | ℃ |
| Storage Temperature Range
| Tstg | -40～+120 | ℃ |
| Solder Temperature(3 sec)
| Th | 260 | ℃ |
LED working lifetime 100,000hrs. Absolute Maximum Rating at Ta=25℃
