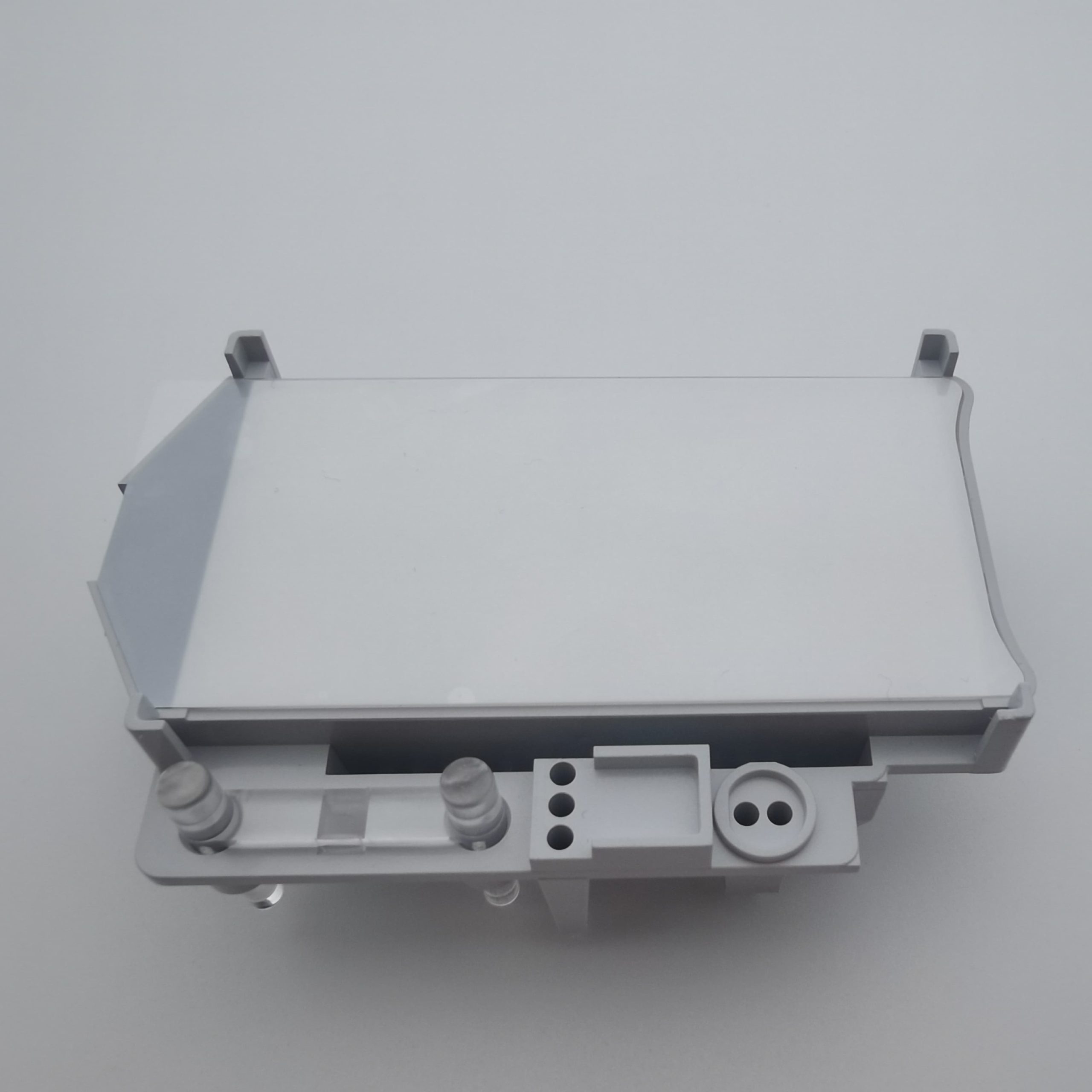

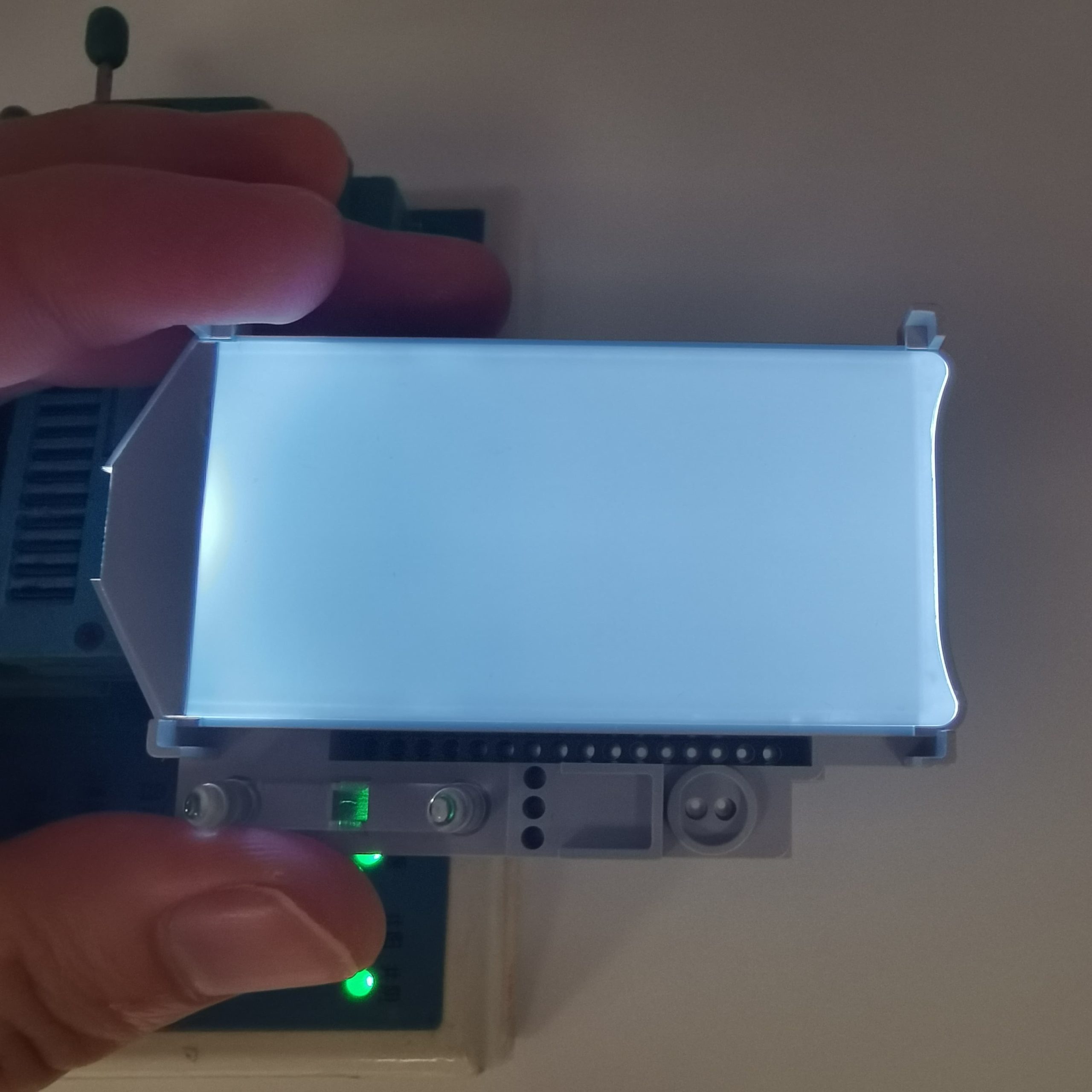

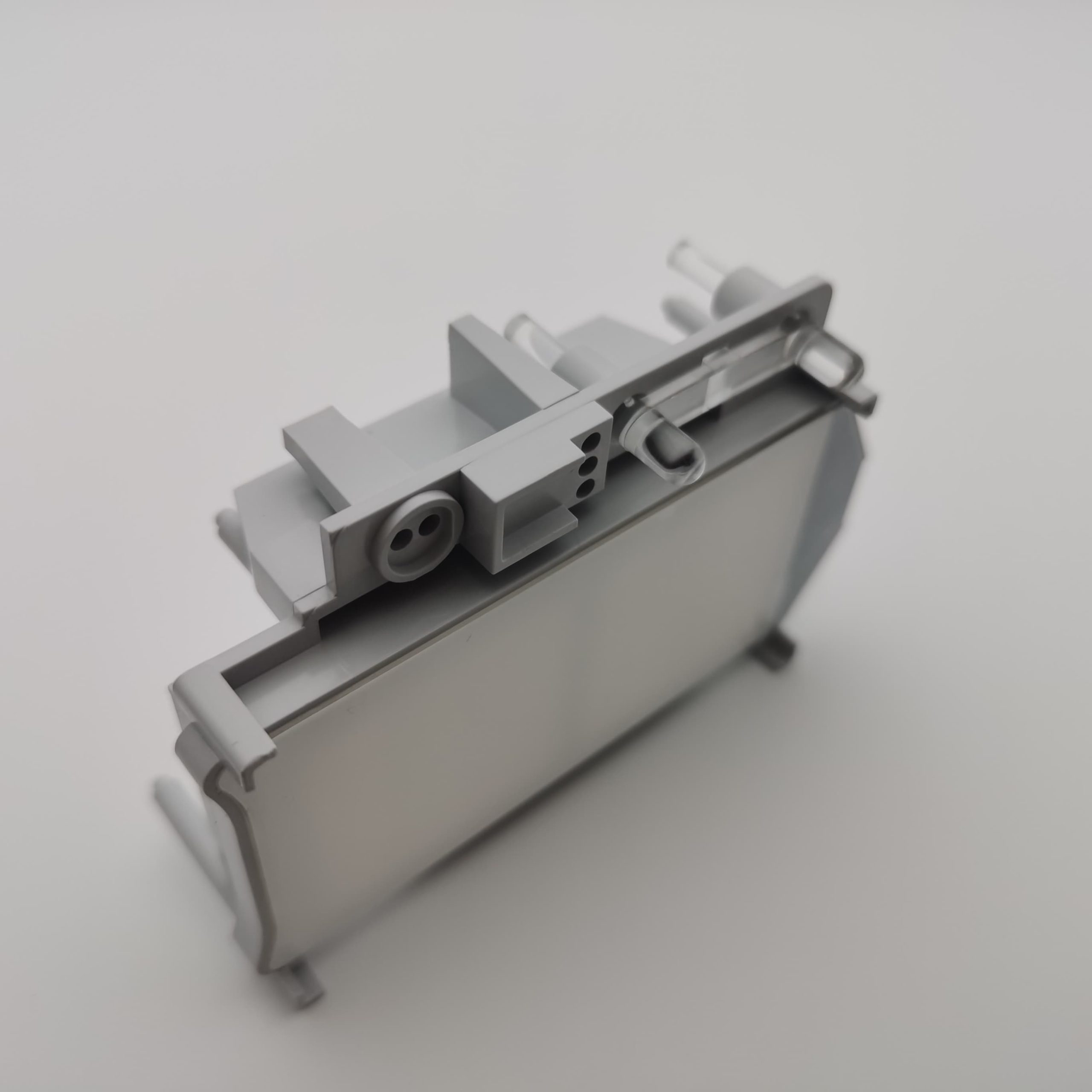

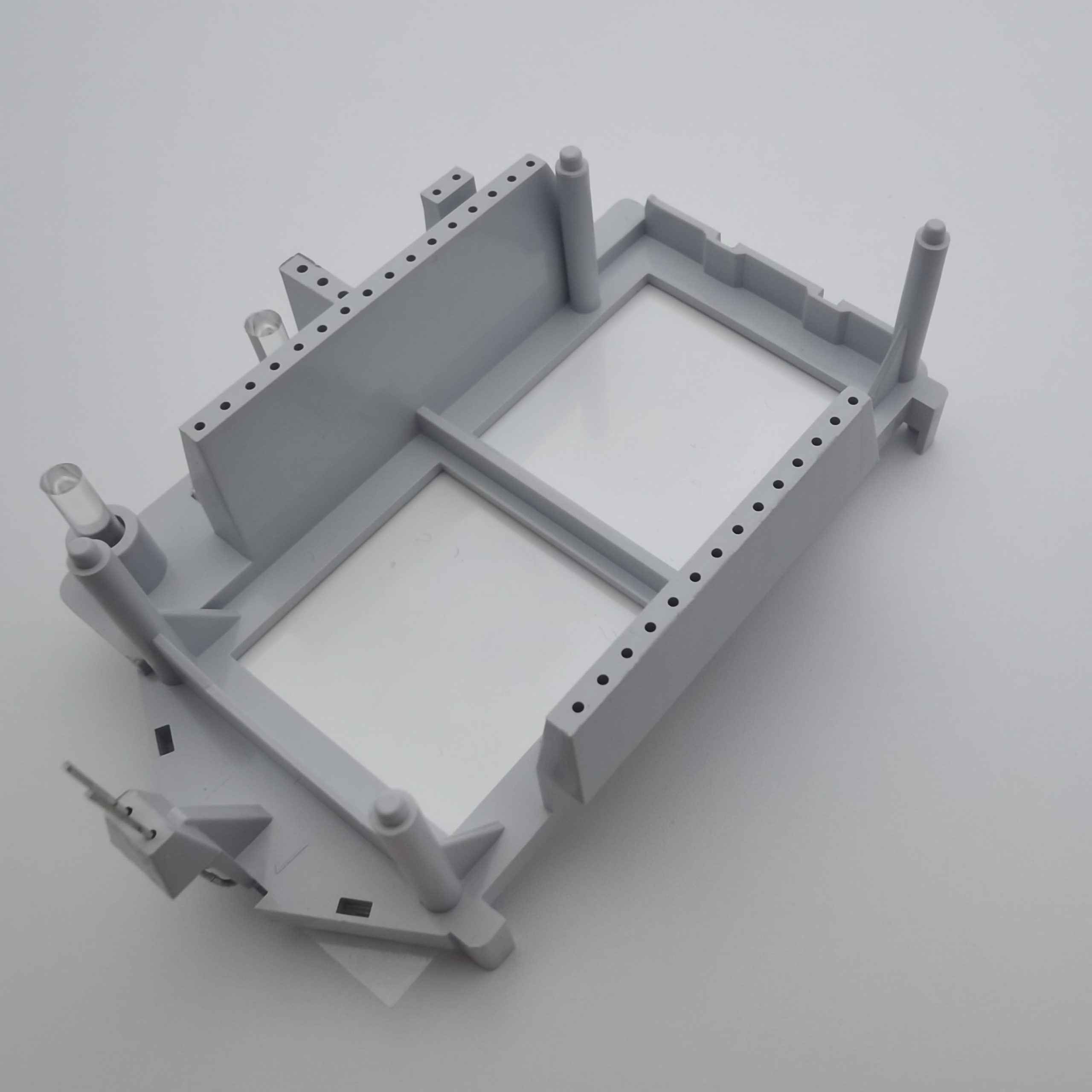

LED backlight
Description :
Product Description:
| LED CODE | EMITTING COLOUR | WAVELENGTH(NM) | LUMINOUS INTENSITY(MCD) | FORWARD VOLTAGE(V) | FORWARD CURRENT(mA) |
| R | SUPER BRIGHT RED | 630-635 | 50-60 | 1.8-2.2 | 5-10 |
| UR | ULTRA BRIGHT RED | 620-625 | 90-100 | 1.8-2.2 | 5-10 |
| J | YELLOW GREEN | 569-573 | 30-40 | 1.8-2.4 | 5-10 |
| Y | YELLOW (AMBER) | 585-595 | 50-60 | 1.8-2.4 | 5-10 |
| F | ORANGE | 600-605 | 50-60 | 1.8-2.4 | 5-10 |
| G | PURE GREEN | 515-525 | 120-160 | 2.5-3.0 | 5-10 |
| BH(B) | BLUE | 460-470 | 100-120 | 2.6-3.0 | 5-10 |
| WH(W) | WHITE | / | 120-140 | 2.6-3.0 | 5-10 |
LED color: white
Light type” edge-lighted
LGP material: Arcylic
Forward voltage: 2.8-3.3V
Forward current:12-15mA
High brightness
Low cost
Low power consumption
Stable performance
Good consistence
Easy assembly
Meet RoHS
Long lifetime
Applications:
Widely used for electric energy meter, instrument panels, home appliances and so on .
