Four Digit
Description :
Product Description:

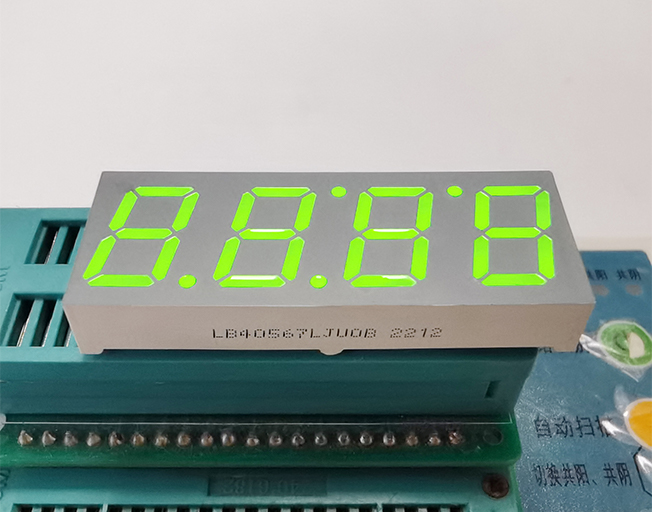

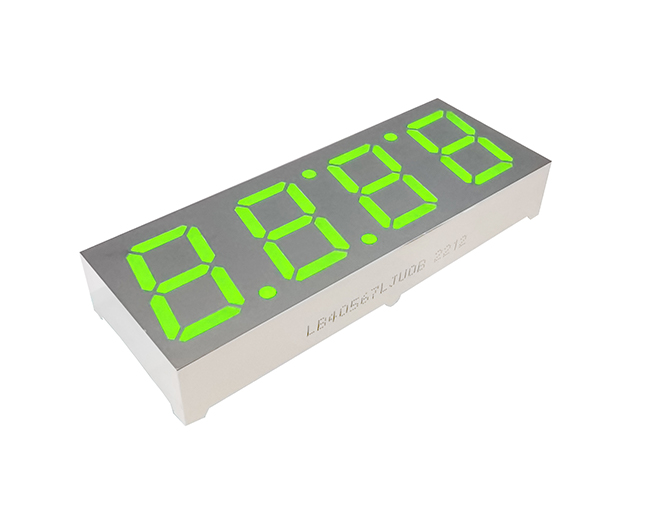

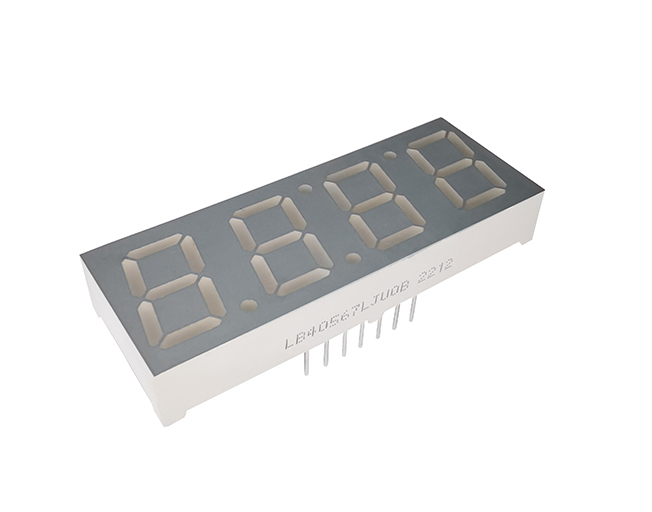

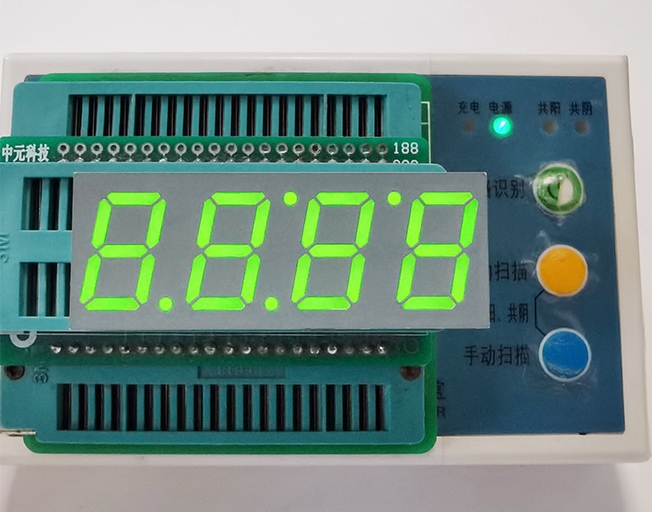

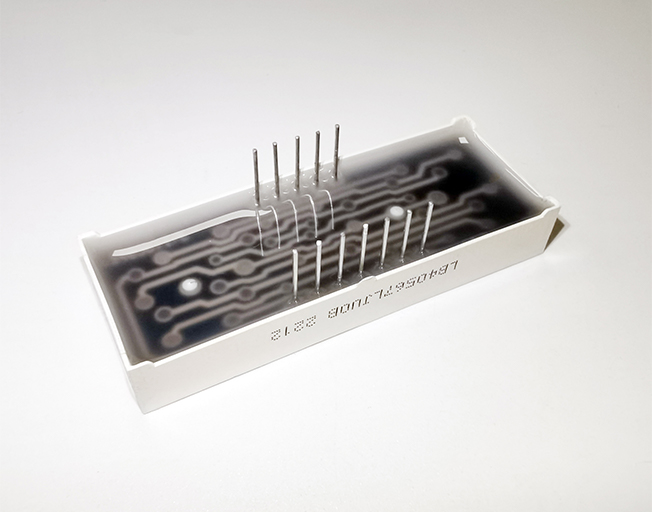

Yellow Green 4 Digit 0.56inch 7 Segment LED Display White Segment Gray Surface
Code:Yellow Green
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 1.8 | / | 2.5 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | / | / | V |
| Luminous Intensty | Iv | If=20mA | 20 | / | 40 | mcd |
| Spectrum With Of Half Value | λ | If=20mA | / | 20 | / | nm |
| Wavelength
| Dλ | If=20mA | 569 | / | 574 | nm |
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+120 | ℃ |
| Storage Temperature Range
| Tstg | -40~+120 | ℃ |
| Solder Temperature(3 sec)
| Th | 260 | ℃ |
LED working lifetime 80,000hrs, Absolute Maximum Rating at Ta=25℃
Feature of Segment LED Displays
— White segment Gray surface
— High luminous intensity
— Low current operation
— Stable performance
— Continuous uniform segments
— Easy mounting on PCB
— IC compatible
— RoHS compliant
Application of Segment LED Displays
— Audio Equipment or instrument panels;
— General using for digital indicators;
— Multimedia products;
— Bank exchange rate display;
— LED clock display;
— Display for gas station and other various display areas of equipment/machine.
Industrial Equipment
Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems
