Absolute Maximum Ratings(Ta=25ºC)
|
Parameter |
Symbol |
Ratings
|
Unit
|
|
Forward Current(per dice) |
Ipm |
20 |
mA |
|
Reverse Voltage(per dice) |
Vr |
5 |
V |
|
Power Dissipation(per dice) |
Pm |
80 |
mW |
|
Operating Temperature Range |
Topr |
-40~+85 |
ºC |
|
Storage Temperature Range |
Tstg |
-40~+85 |
ºC |
|
Solder Temperature(≤3 seconds) |
Th |
260 |
ºC |
Code:Yellow Green- J
|
Parameter |
Symbol |
Condition
|
Min
|
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=10mA |
1.8 |
/ |
2.4 |
V |
|
Reverse Voltage |
Vr |
Ir=10uA |
5 |
/ |
/ |
V |
|
Luminous Intensty |
Iv |
If=10mA |
30 |
/ |
40 |
mcd |
|
Spectrum With Of Half Value |
△λ |
If=10mA |
/ |
20 |
/ |
nm |
|
Wavelength |
Dλ |
If=10mA |
569 |
/ |
574 |
nm |
Code:Amber/Yellow -Y
|
Parameter |
Symbol |
Condition
|
Min
|
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=10mA |
1.8 |
/ |
2.5 |
V |
|
Reverse Voltage |
Vr |
Ir=10uA |
5 |
/ |
/ |
V |
|
Luminous Intensty |
Iv |
If=10mA |
60 |
/ |
80 |
mcd |
|
Spectrum With Of Half Value |
△λ |
If=10mA |
/ |
20 |
/ |
nm |
|
Wavelength |
Dλ |
If=10mA |
585 |
/ |
595 |
nm |
Code:Orange -F
|
Parameter |
Symbol |
Condition
|
Min
|
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=10mA |
1.8 |
/ |
2.4 |
V |
|
Reverse Voltage |
Vr |
Ir=10uA |
5 |
/ |
/ |
V |
|
Luminous Intensty |
Iv |
If=10mA |
60 |
/ |
80 |
mcd |
|
Spectrum With Of Half Value |
△λ |
If=10mA |
/ |
20 |
/ |
nm |
|
Wavelength |
Dλ |
If=10mA |
600 |
/ |
605 |
nm |
Code:Super Bright Red -R
|
Parameter |
Symbol |
Condition
|
Min
|
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=10mA |
1.8 |
/ |
2.2 |
V |
|
Reverse Voltage |
Vr |
Ir=10uA |
5 |
/ |
/ |
V |
|
Luminous Intensty |
Iv |
If=10mA |
50 |
/ |
60 |
mcd |
|
Spectrum With Of Half Value |
△λ |
If=10mA |
/ |
20 |
/ |
nm |
|
Wavelength |
Dλ |
If=10mA |
630 |
/ |
635 |
nm |
Code:Ultra Bright Red -UR
|
Parameter |
Symbol |
Condition
|
Min
|
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=10mA |
1.8 |
/ |
2.2 |
V |
|
Reverse Voltage |
Vr |
Ir=10uA |
5 |
/ |
/ |
V |
|
Luminous Intensty |
Iv |
If=10mA |
80 |
/ |
100 |
mcd |
|
Spectrum With Of Half Value |
△λ |
If=10mA |
/ |
20 |
/ |
nm |
|
Wavelength |
Dλ |
If=10mA |
625 |
/ |
635 |
nm |
Code:Pure Green -G
|
Parameter |
Symbol |
Condition
|
Min
|
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=10mA |
2.6 |
/ |
3.2 |
V |
|
Reverse Voltage |
Vr |
Ir=10uA |
5 |
/ |
/ |
V |
|
Luminous Intensty |
Iv |
If=10mA |
120 |
/ |
180 |
mcd |
|
Spectrum With Of Half Value |
△λ |
If=10mA |
/ |
20 |
/ |
nm |
|
Wavelength |
Dλ |
If=10mA |
515 |
/ |
525 |
nm |
Code:Ultra Bright Blue -BH
|
Parameter |
Symbol |
Condition
|
Min
|
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=10mA |
2.8 |
/ |
3.2 |
V |
|
Reverse Voltage |
Vr |
Ir=10uA |
5 |
/ |
/ |
V |
|
Luminous Intensty |
Iv |
If=10mA |
120 |
/ |
140 |
mcd |
|
Spectrum With Of Half Value |
△λ |
If=10mA |
/ |
20 |
/ |
nm |
|
Wavelength |
Dλ |
If=10mA |
460 |
/ |
465 |
nm |
Code:Ultra Bright White -WH
|
Parameter |
Symbol |
Condition
|
Min
|
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=10mA |
2.8 |
/ |
3.2 |
V |
|
Reverse Voltage |
Vr |
Ir=10uA |
5 |
/ |
/ |
V |
|
Luminous Intensty |
Iv |
If=10mA |
120 |
/ |
140 |
mcd |
|
Spectrum With Of Half Value |
K |
If=10mA |
5500 |
20 |
6800 |
K |
|
Wavelength |
X/Y |
If=10mA |
0.29,0.32 |
/ |
0.30,0.33 |
nm |

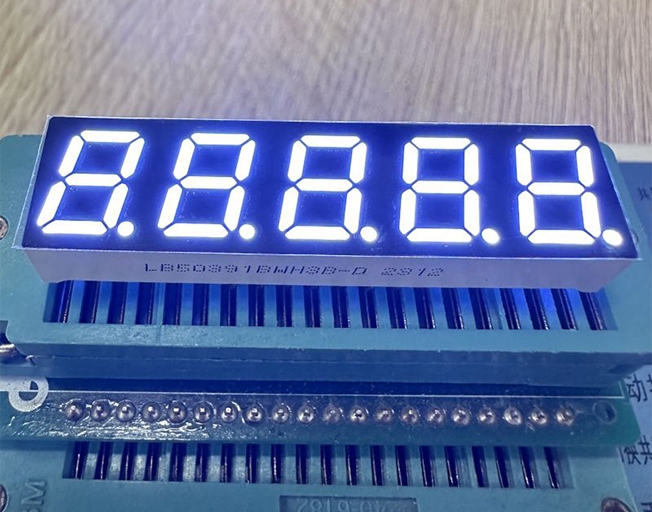

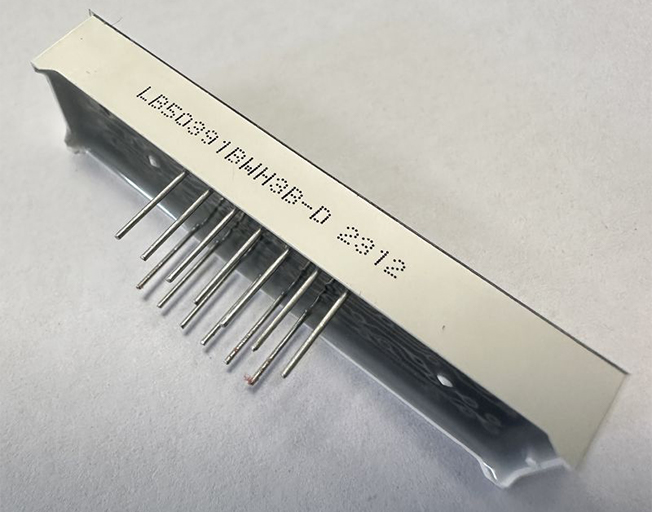

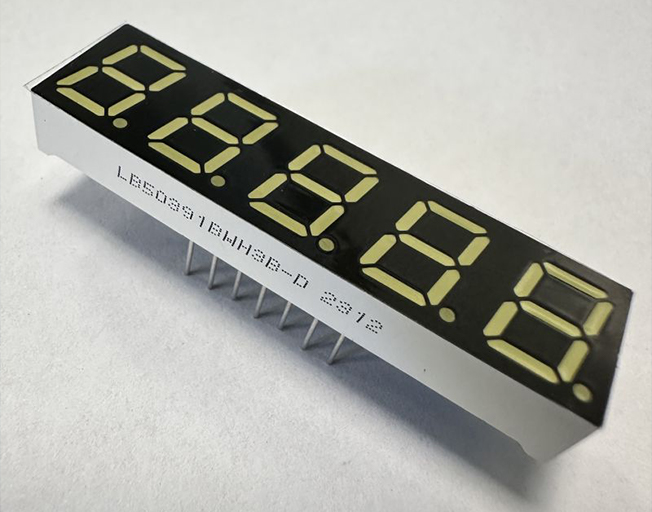

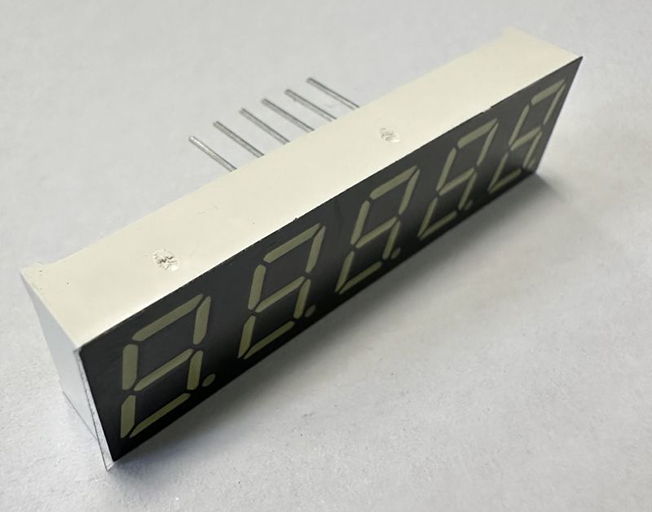

High luminous intensity
Low power requirement
Stable performance
Continous uniform segments
Easy assembly
IC Compatible
Long lifetime
Meet RoHS
APPLICATION:
Widely used for instrument and euipment panel, digital indicators, digital counters and so on .
