Advantages:

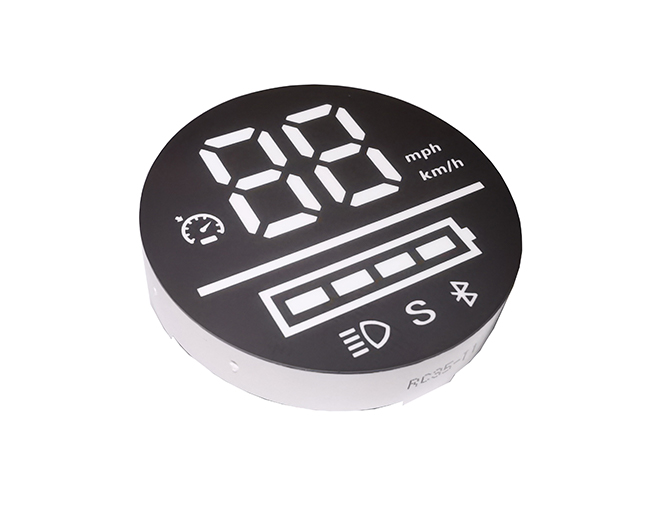

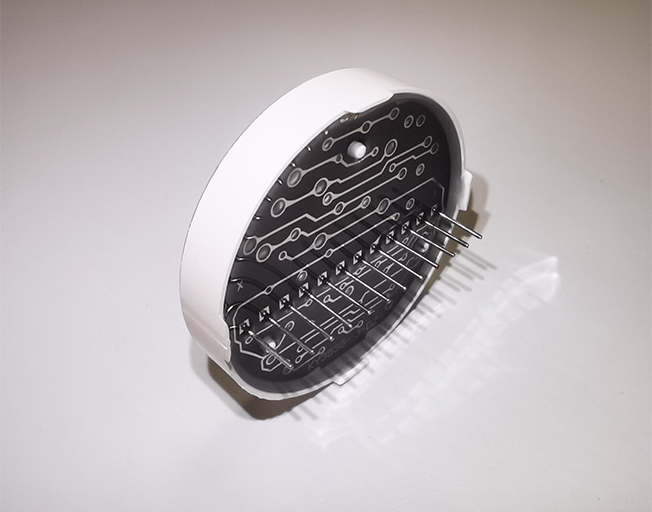

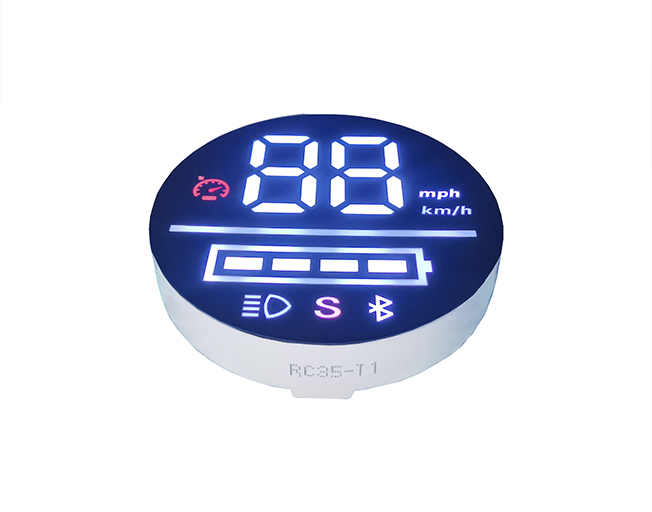

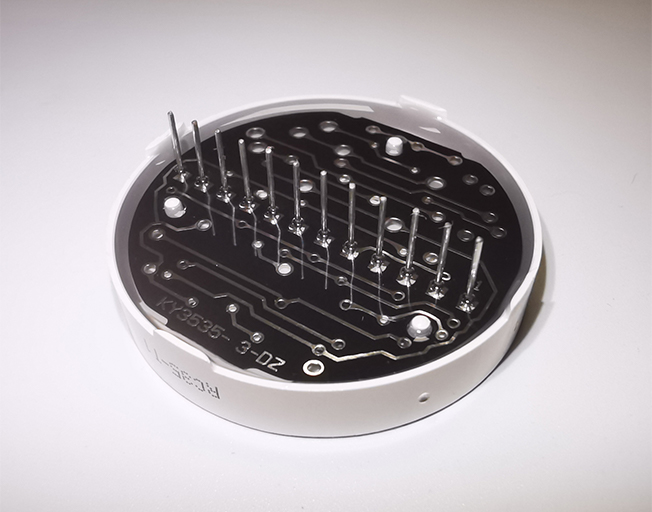

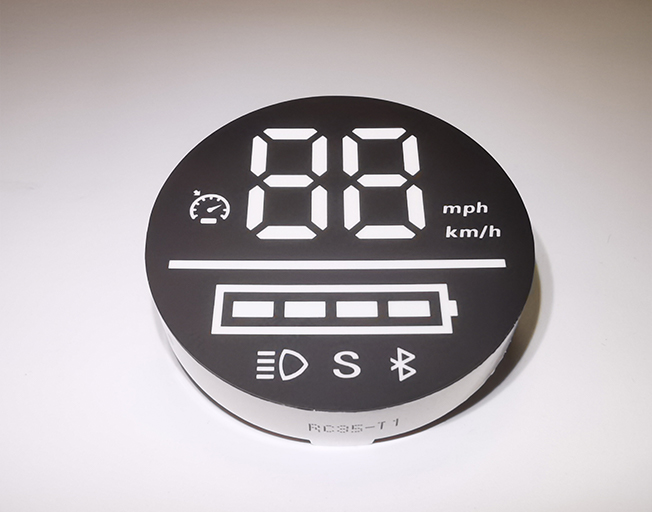

Super Bright White Color Custom Circular LED Display 35mm Diameter For Electric scooter
Code:Ultra Bright White
|
Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=20mA |
2.8 |
/ | 3.6 | V |
|
Reverse Voltage |
Vr |
Ir=10uA |
/ | 5 | / | V |
|
Luminous Intensty |
Iv |
If=20mA |
100 |
/ |
120 |
mcd |
|
Spectrum With Of Half Value |
△λ |
If=20mA |
/ | 20 | / |
nm |
Absolute Maximum Ratings(Ta=25℃)
|
Parameter |
Symbol |
Ratings |
Unit |
|
Forward Current(per dice) |
Ipm |
20 |
mA |
|
Reverse Voltage(per dice) |
Vr |
5 |
V |
|
Power Dissipation(per dice) |
Pm |
80 |
mW |
|
Operating Temperature Range |
Topr |
-40～+120 |
℃ |
|
Storage Temperature Range |
Tstg |
-40～+120 |
℃ |
|
Solder Temperature(3 sec) |
Th |
260 |
℃ |
LED working lifetime 80,000hrs, Absolute Maximum Rating at Ta=25℃
Application of Segment LED Displays
— Audio Equipment or instrument panels;
— General using for digital indicators;
— Multimedia products;
— Bank exchange rate display;
— LED clock display;
— Display for gas station and other various display areas of equipment/machine.
Industrial Equipment
Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems
If you are interested in any product, please contact us. We will introduce our products to you in more detail
