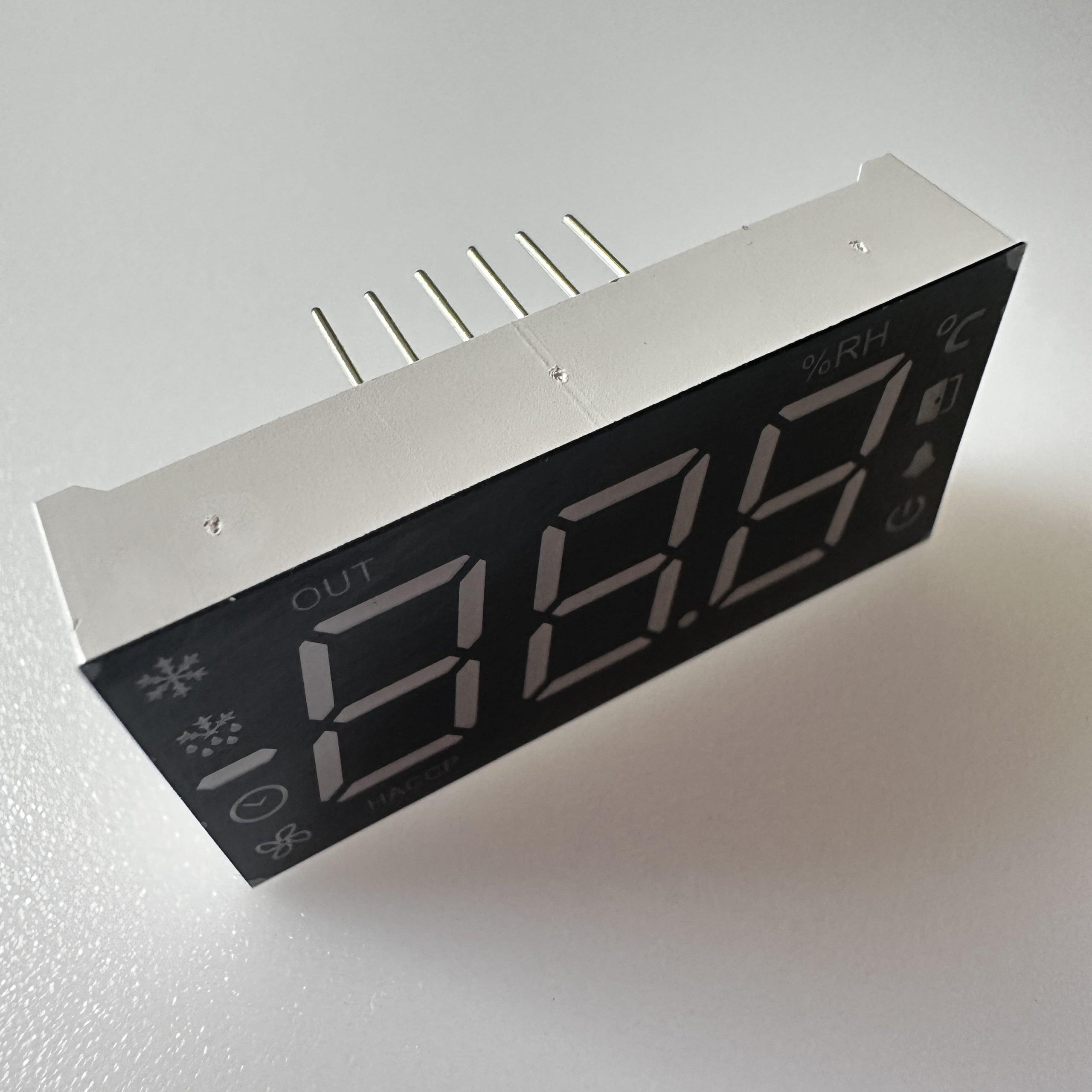

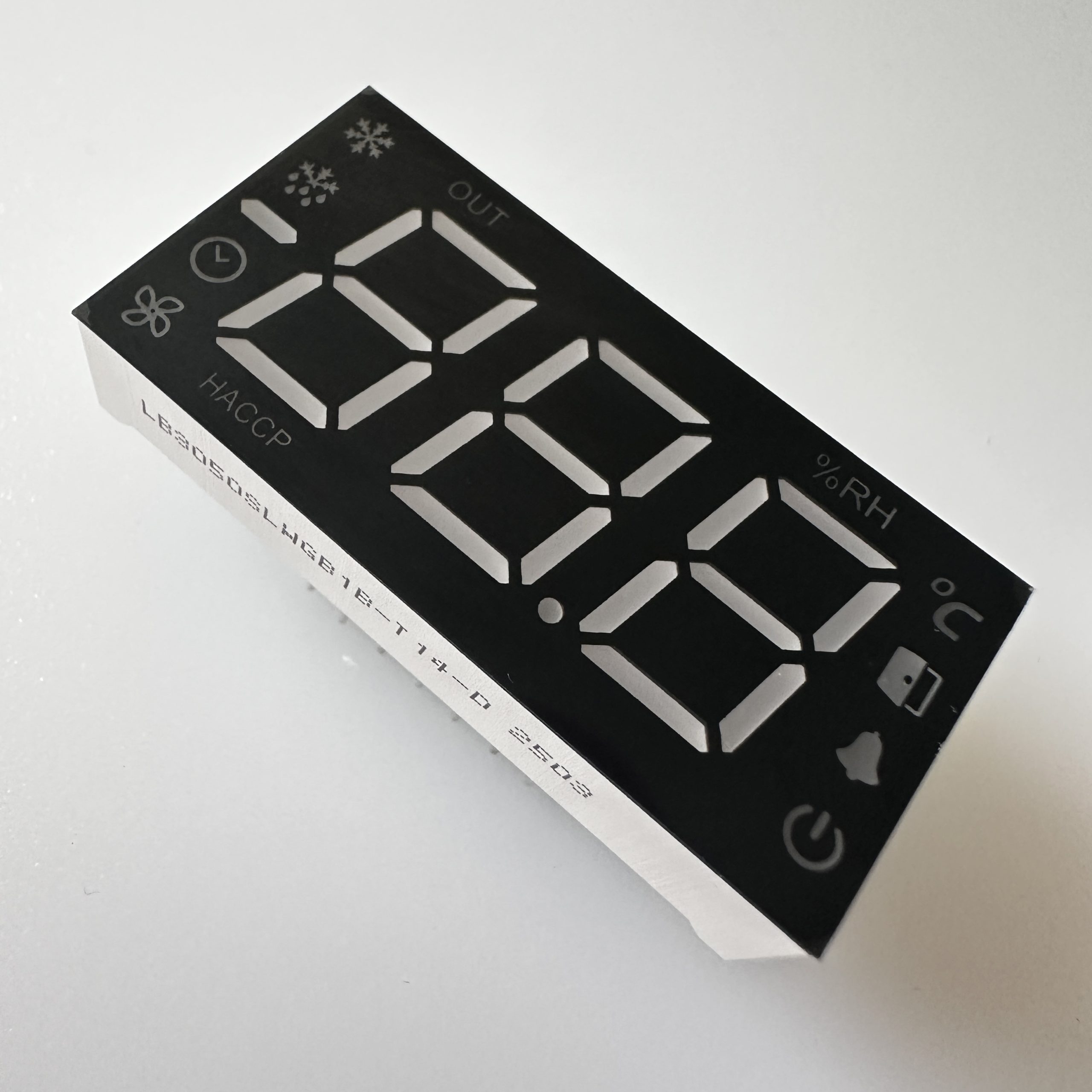

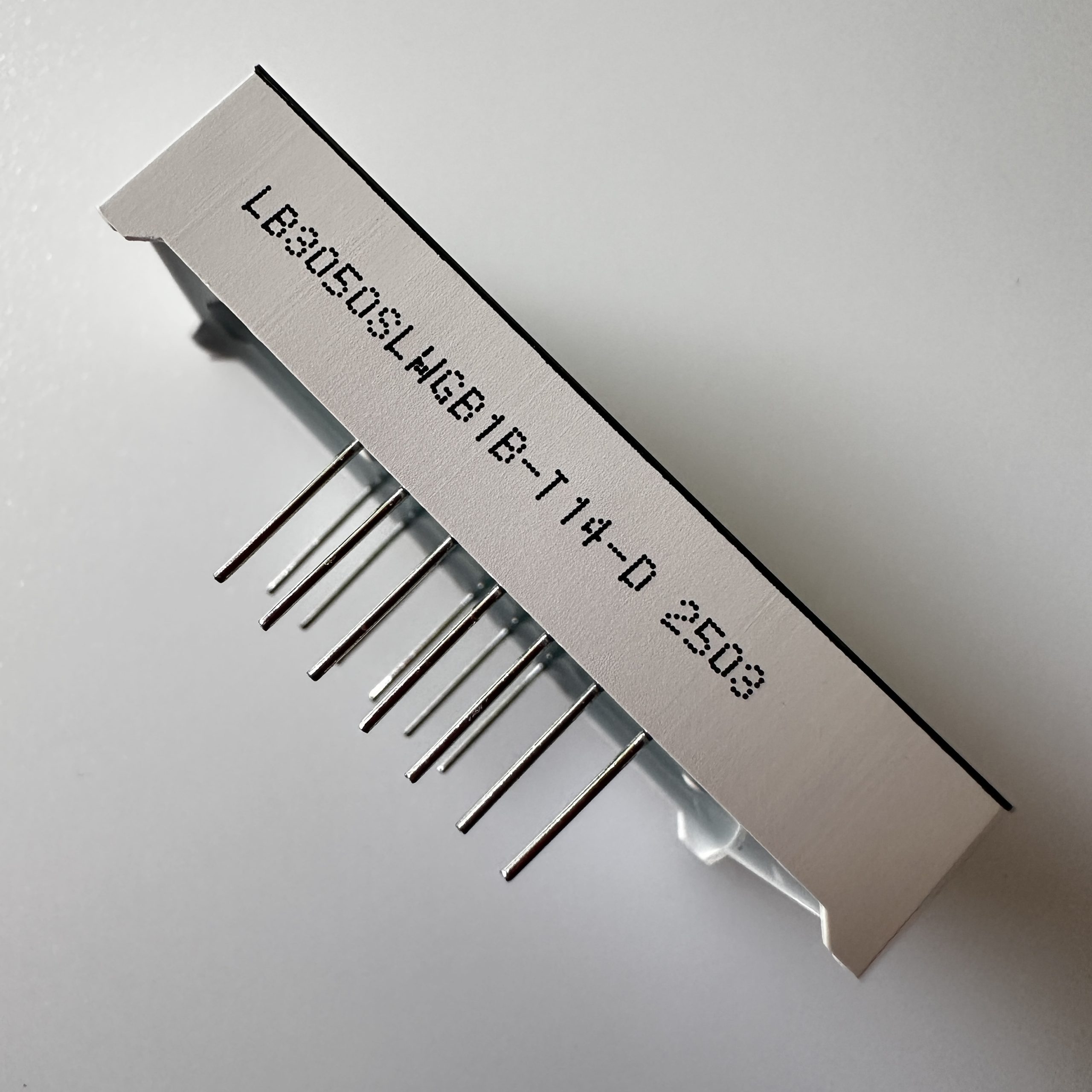

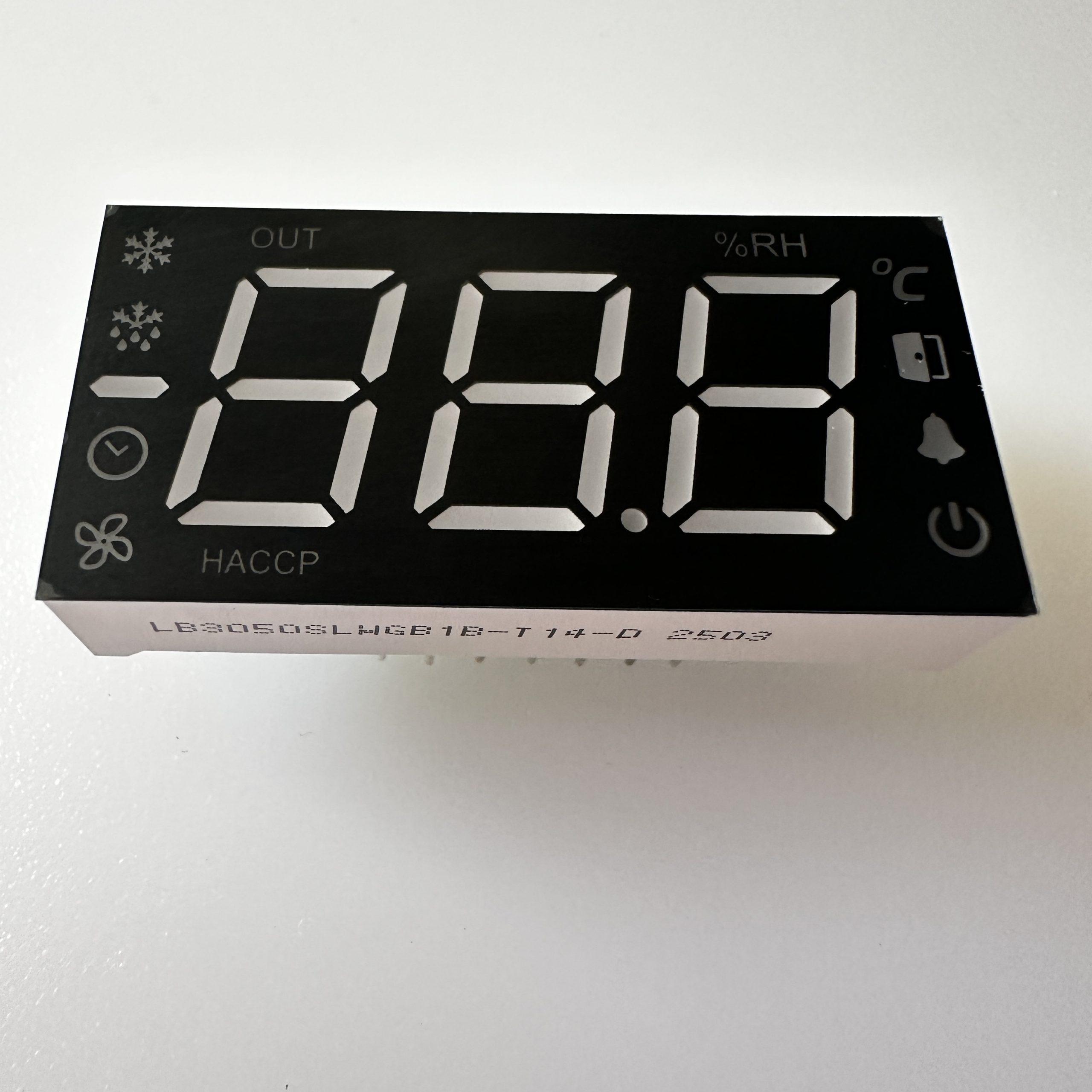

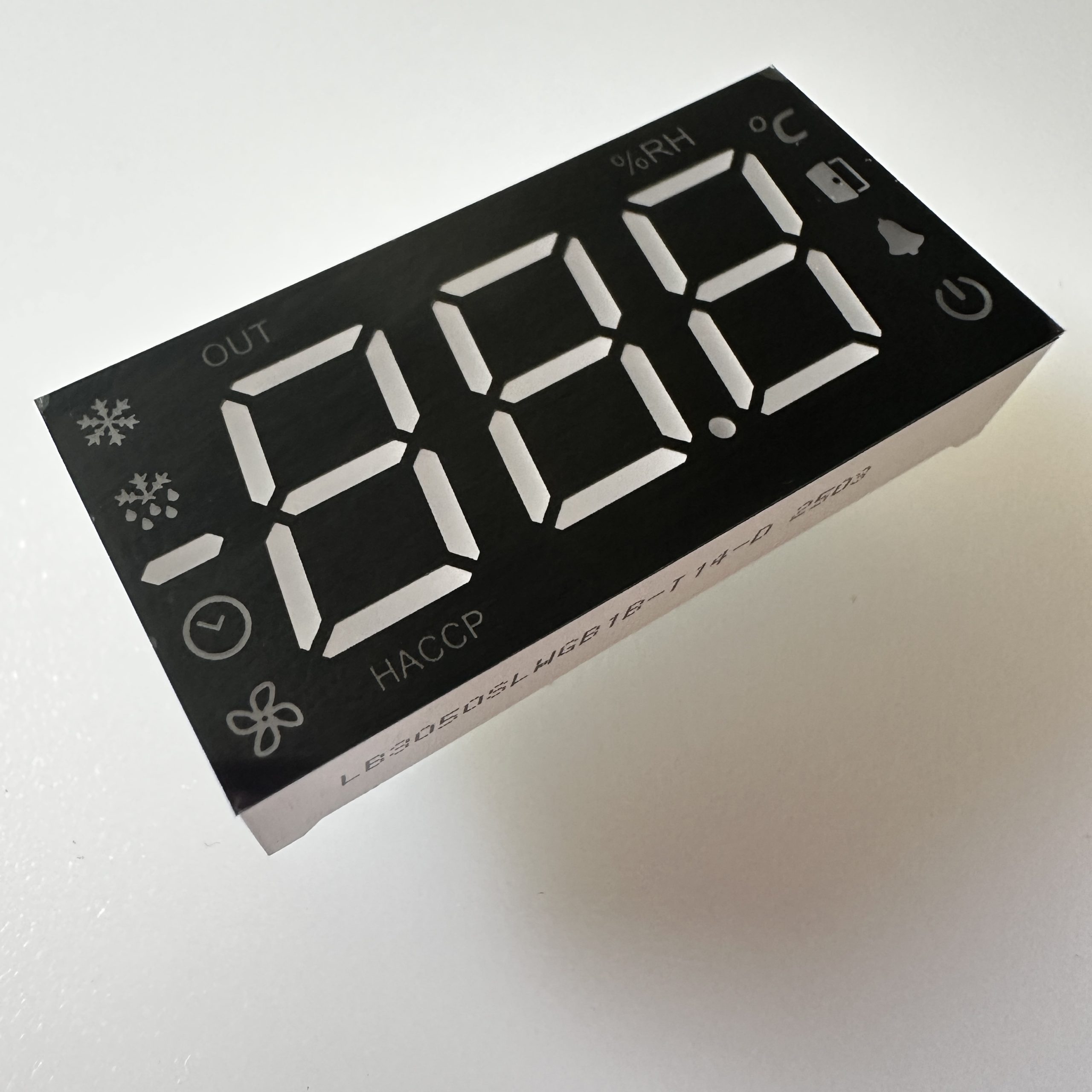

Customized White/Pure Green/Blue 7 Segment LED Display 3 Digit 12.7mm For Refrigerator
Description :
Customized Triple Digit 7 Segment LED Display with minus sign
Dight height: 12.7mm (0.50 inch)
Outer dimensions: 38.2 x 19 x 8mm
Polarity: common cathode
LED color: Ultra bright white ,Pure Green , Blue
Made With white segments and black surface with film
Emitting Colors:available in red, blue, green, white, amber, yellow and orange,Multi-colour
Functional icons Digits and icons LED colors can be customized according to customers requirements .
High luminous intensity and reliability
Low power consumption
low current
Stable performance
Long lifetime
Easy assembly
IC compatible
Certificate: RoHS,REACH
PRODUCTS DESCRIPTIONS:
Customized White/Pure Green/Blue LED Display 3 Digit 7 Segment For Refrigerator Temperature Control
| Package dimensions | 38.5**19*8 (mm) |
| Character Height | 12.7mm (0.5inch) |
| Face Colour | Black |
| Polarity | Common Cathode |
| Emitting Colour | Ultra bright white/ Pure Green / Blue |
| Operating Temperature | -35ºC ~ +85ºC |
| Forward voltage | 2.8-3.2V/led |
| Pin type | Pin through hole |
| Recommanded forward current | 5-10mA |
Key Specifications/Special Features:
Multi-colour 3 1/2 digit 7 segment led display
Character height: 12.7mm (0.50 inch)
Outer dimensions: 38.2 x 19 x 8mm
Polarity: common cathode
LED color: Ultra bright white ,Pure Green , Blue
Made With white segments and black surface with film
Emitting Colors:available in red, blue, green, white, amber, yellow and orange,Multi-colour
High luminous intensity and reliability
Low power consumption
low current
Stable performance
Long lifetime
Easy assembly
IC compatible
Certificate: RoHS,REACH
PRODUCTS PARAMETERS:
Absolute Maximum Ratings(Ta=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(≤3 seconds) | Th | 260 | ºC |
Code:Yellow Green- J
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 30 | | 40 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 569 | | 574 | nm |
Code:Amber/Yellow -Y
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.5 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 60 | | 80 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 585 | | 595 | nm
|
Code:Orange -F
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 60 | | 80 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 600 | | 605 | nm |
Code:Super Bright Red -R
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 50 | | 60 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 630 | | 635 | nm |
Code:Ultra Bright Red -UR
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 80 | | 100 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 625 | | 635 | nm |
Code:Pure Green -G
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 120 | | 180 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 515 | | 525 | nm |
Code:Ultra Bright Blue -BH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 120 | | 140 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 460 | | 465 | nm |
Code:Ultra Bright White -WH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 120 | | 140 | mcd |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
| Chromaticity Coordinates | X/Y | If=10mA | 0.29 | | 0.33 | nm |
PRODUCTS APPLICATIONS:
Applications:widely used for home appliances,tempearture indicators, humidity indicators, refrigerator controller,thernostats indicator,heating and cooling control and so on .
