Advantages:
High-luminous intensity output
High-efficiency
Low-power consumption
Extremely low-current
Luminous evenly distributed on each segment
Emitting colors: various colors avaioaboe

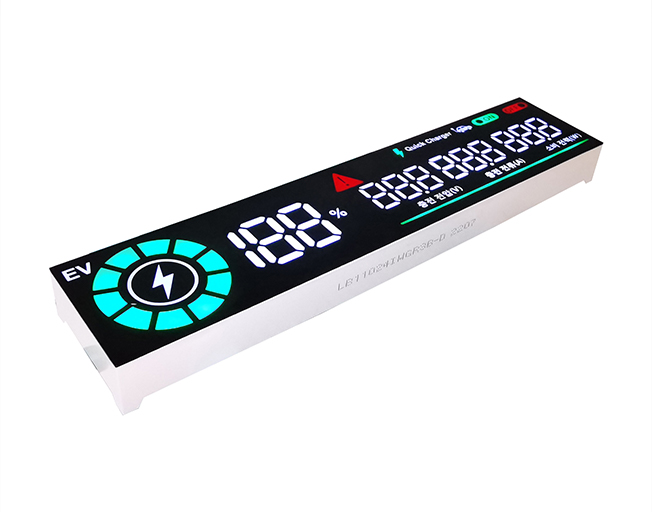

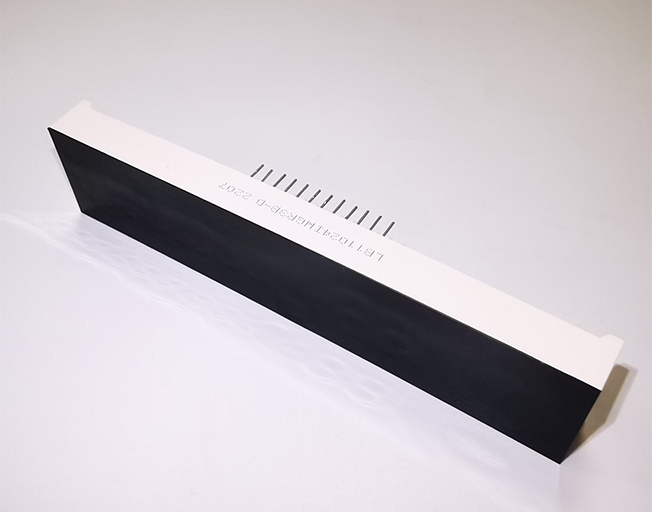

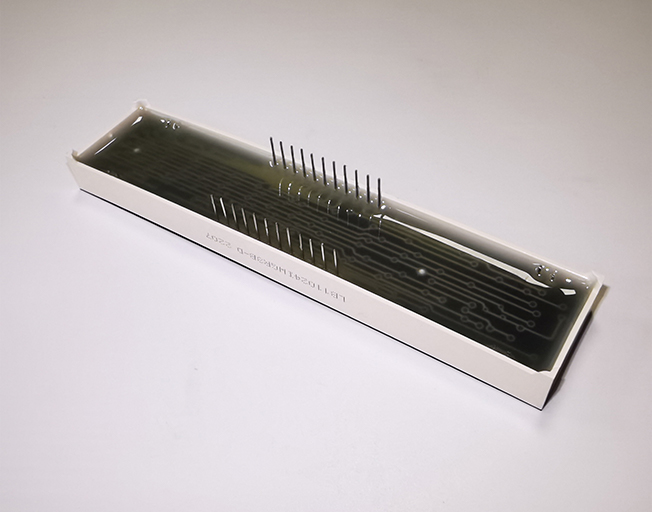

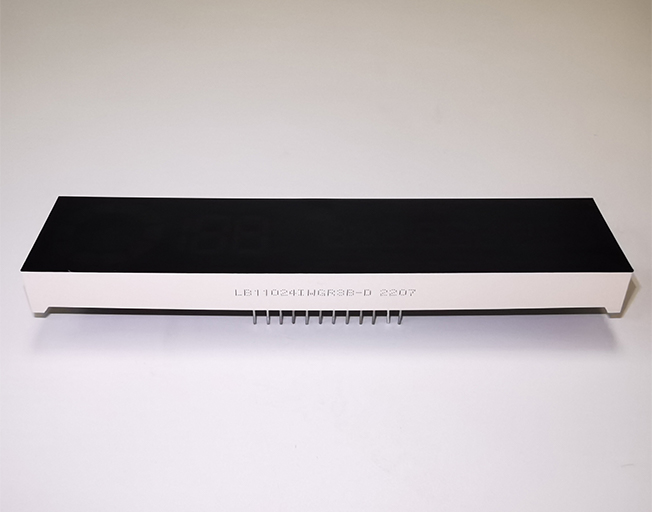

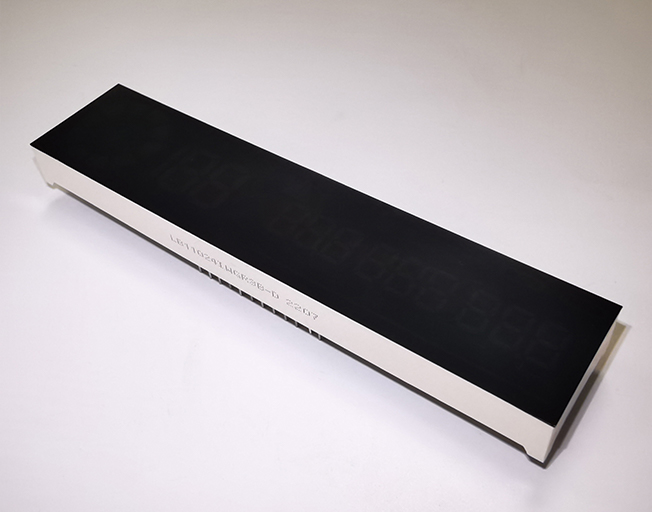

Customized White / Green / Red 7 Segment LED Display Module Common Anode For EV Charge
Code:Ultra Bright White
|
Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=20mA |
2.8 |
/ |
3.2 |
V |
|
Reverse Voltage |
Vr |
Ir=40uA |
/ | 5 | / | V |
|
Luminous Intensty |
Iv |
If=20mA |
100 | / | 120 |
mcd |
|
Spectrum With Of Half Value |
△λ |
If=20mA |
/ | 20 | / |
nm |
|
Wavelength |
Dλ |
If=20mA |
625 | / | 635 |
nm |
Absolute Maximum Ratings(Ta=25℃)
|
Parameter |
Symbol |
Ratings |
Unit |
|
Forward Current(per dice) |
Ipm |
20 |
mA |
|
Reverse Voltage(per dice) |
Vr |
5 |
V |
|
Power Dissipation(per dice) |
Pm |
80 |
mW |
|
Operating Temperature Range |
Topr |
-40～+120 |
℃ |
|
Storage Temperature Range
|
Tstg |
-40～+120 |
℃ |
|
Solder Temperature(3 sec)
|
Th |
260 |
℃ |
LED working lifetime 100,000hrs. Absolute Maximum Rating at Ta=25℃
