Understanding Seven Segment Displays and Their Practical Uses

Introduction: The Foundation of Digital Readouts

Look around your kitchen or workshop, and you’ll spot them everywhere: the glowing red numbers on the microwave timer, the green digits on the multimeter, the white readout on the washing machine. Those are 7-segment LED displays doing what they’ve done for decades—showing numbers fast, cheap, and dead clear. Fancy color screens grab the headlines, but when you just need to know the temperature, voltage, or countdown time at a glance, nothing beats the old-school seven bars of light.

LIGHTBO has been making these parts since 2006 in Shenzhen. We ship them by the millions into ovens, meters, chargers, and factory gauges. Simple as they look, pick the wrong size or color and the whole product feels cheap. Get it right, and the customer never notices—because it just works.

The Ubiquity of Simple Numerical Display

Seven-segment stays king because it’s hard to mess up a number. One quick look and you know it’s 88 °C, not 8B or BB. Power draw is tiny, the parts cost pennies, and they laugh at heat, cold, and vibration. That’s why you still see them on new gear in 2025.

Defining the Digital Interface

At LIGHTBO, we keep a full line ready—single digit up to six, red, green, blue, white, whatever the job calls for. Need it bright enough to read in direct sun or soft for a bedroom clock? We’ve got it.

Fundamentals: Anatomy and Operation of the 7-Segment Display

Take a single digit. Draw a figure-eight with the bottom loop cut off, and you’ve got the basic shape. Seven bars (we call them segments a through g) plus a decimal point. Light the right ones, and you get 0–9 every time.

Anatomy: Segments (a to g) and the Decimal Point

Top bar is “a”, upper right is “b”, lower right is “c”, and so on clockwise, middle bar “g”, bottom “d”. Decimal point sits off to the lower right. Turn on a, b, c, d, e, f, and you’ve got a zero. Easy. Throw in the dot, and you can show 12.7 volts or 98.6 °F.

Operational Types: Common Cathode vs. Common Anode

Two ways to wire them up. Common cathode ties all the negatives together—you feed plus to the segments you want lit. Common anode ties all the positives—you pull the segments low to light them. Pick the one that matches your driver chip and save yourself a headache.

Types and Customization: Tailoring 7-Segment Displays for Performance

Digit Count Flexibility: From Single to Six Digits

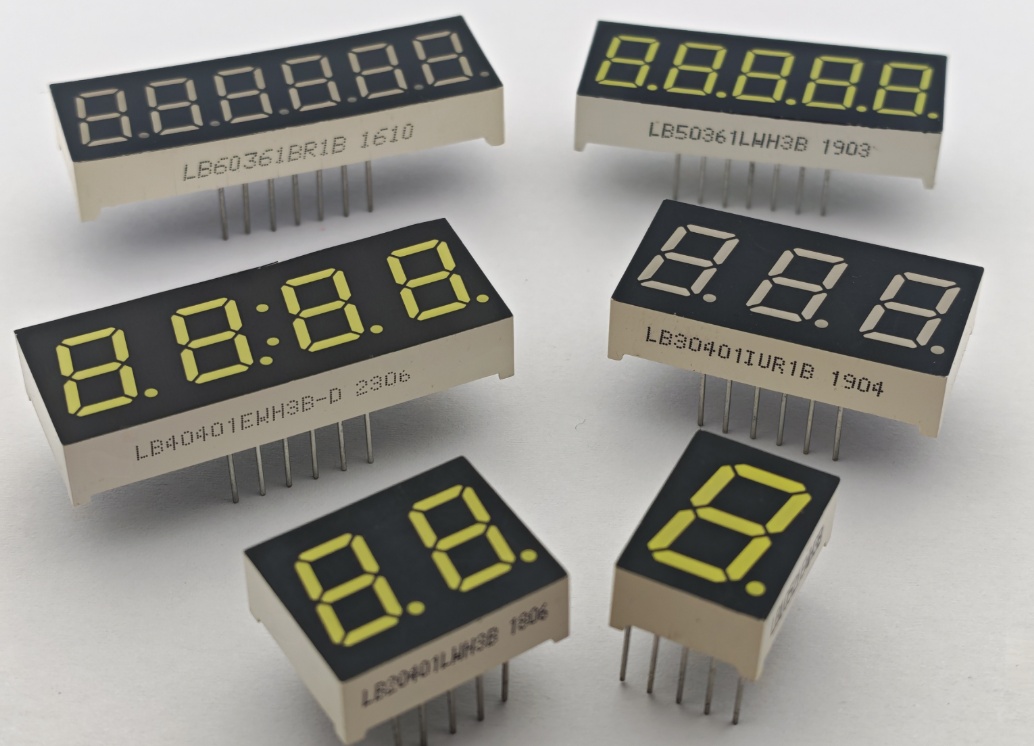

Some jobs need one digit (a simple battery tester). Others need four or six (a digital scale or frequency counter). We stock everything from tiny single-digit parts to long six-digit sticks. Mix and match heights—0.28 inch for compact gear, 1 inch when the operator stands three meters away.

Color and Brightness Customization for Specific Applications

Color matters more than people think. White cuts through steam in an oven. Pure green reads clean on a fridge door. Blue looks sharp on test gear. We do ultra-bright versions for outdoor meters and softer ones for bedroom clocks. One customer puts our multicolor 7-segment in UPS boxes—green for good, yellow for warning, red for trouble. One glance and the tech knows what’s up.

Enhancing Visibility: Integrating LED Backlights

Sometimes the room is dark, or the panel sits at a weird angle. That’s when we add an LED backlight behind the digits. Even light, no hot spots, numbers pop no matter what.

Core Applications: Where 7-Segment Displays Provide Maximum Value

Leading the Way in Household Appliances and Temperature Control

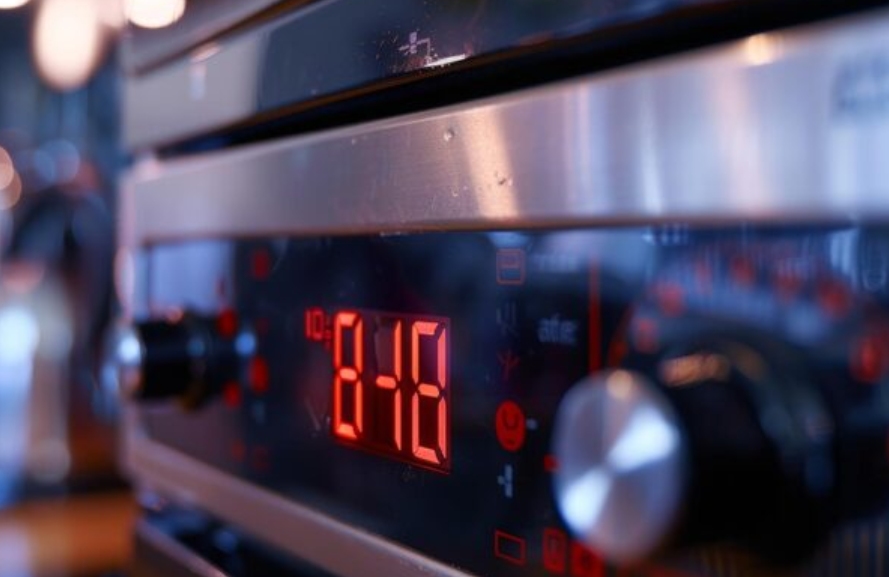

Walk into any kitchen, and half the timers, ovens, and microwaves run our parts. Red digits on black background for ovens—bright enough to read through grease-splattered glass. Green or blue on fridges—cool look, easy on the eyes when you grab milk at midnight.

Industrial and Power Systems Monitoring

Factory floors beat equipment up. Vibration, oil mist, 50 °C heat—our displays shrug it off. Multimeters, panel meters, UPS front panels, motor drives—all show volts, amps, or frequency on 7-segment displays because the guy in coveralls needs to see 230.4 V from ten feet away, not squint at a graphic screen.

New Energy and Measurement Solutions

Solar inverters, EV chargers, battery monitors—new stuff still loves old-school digits. Charge level at 98 %, pack voltage 398.2 V, current draw 47 A. Clear, fast, no fancy graphics to confuse anyone.

LIGHTBO’s Commitment to Quality 7-Segment Solutions

LIGHTBO started in 2006, and we still run on one rule: ship parts that work first time, every time.

HIGH QUALITY: Certifications and Professional Testing

Own test lab, burn-in ovens, vibration tables, the works. Everything leaves RoHS clean with Trust Seal and Credit Check paperwork.

Development and Manufacturing: Customization and Automation

Got a weird size or odd color? Our design crew draws it up, and the auto lines spit it out. Need a 0.56-inch pure green four-digit with decimal points in specific places? Two weeks and it’s on your dock.

Conclusion: The Enduring Legacy of the 7-Segment Display

Fancy screens come and go, but 7-segment keeps showing up on new gear year after year. It’s cheap, tough, bright, and impossible to misread when you just need numbers. LIGHTBO keeps the line running—single digit to six, any color, any brightness. Need a display that just works? Give us a shout.

FAQ

Q: What industries use LIGHTBO 7-segment parts the most?

A: Household appliances, test instruments, power supplies, and new-energy gear.

Q: What kind of custom work can you do?

A: Color, brightness, digital height, size,symbol and even the exact position of decimal points.

Q: How do you keep quality consistent?

A: Full in-house test lab, RoHS, Trust Seal, and we burn every batch in before it ships.

Q: What else do you make besides 7-segment?

A: Dot matrix, 14- and 16-segment alphanumeric, plus all kinds of LED backlights.
