How Far Can You Read a 7-Segment LED Display in Direct Sunlight

Think about standing outside on a bright summer day, trying to check the speed on an electric scooter or the temperature on a big outdoor oven. The sun beats down hard, throwing around 10,000 foot-candles of light. If the numbers fade or vanish in that glare, the whole device feels useless. Reading distance for a 7-Segment LED Display in full sun depends on more than just digit size. It comes down to how bright the segments glow, how well they stand out from the background, and smart build choices. LIGHTBO has worked on these details since the mid-2000s. Our Shenzhen plant turns out displays that stay sharp no matter how harsh the light gets.

Understanding the Challenges of High-Ambient Light Visibility

Bright outdoor light creates a problem called washout. Reflected sunlight off the display surface overpowers the glow from the lit segments. Viewers struggle to tell lit digits from dark ones.

The Role of Luminous Intensity and Contrast Ratio

Brightness starts with luminous intensity, rated in millicandelas (mcd). Regular indoor displays look blank outside. LIGHTBO picks high-output chips that push far more mcd. Yet raw brightness only goes so far. Contrast matters just as much. Lit segments need to pop against the dark faceplate. A matte black background cuts reflections. Users on sunny patios report reading oven temps from across the deck when the face stays non-glossy, and segments run hot.

Impact of Direct Sunlight on Segment Recognition

Sun rays bouncing inside cheap housings cause ghosting. Unlit parts look faintly on because light scatters around. This confuses numbers at a glance. LIGHTBO molds housings tightly and controls every production step. Internal leaks stay minimal. Technicians testing units at noon on rooftop pads see clean, sharp digits with no fake glow on off segments.

Factors Determining Maximum Viewing Distance

Reading range mixes physical height with light output. Bigger characters help, but sunlight cuts distance unless brightness keeps up.

Character Height and the Rule of Thumb for Legibility

Shop rules say each inch of digit height gives about 30 to 40 feet of clear view indoors. A 12.7mm tall character from LIGHTBO works fine for arm’s-length jobs like appliance panels. Direct sun shortens the reach fast on ordinary parts. Our high-output versions hold legibility farther out. Plants order four-digit clocks with 25mm characters for warehouse walls. Workers read time from 15-20 meters away, even through south-facing windows on clear days.

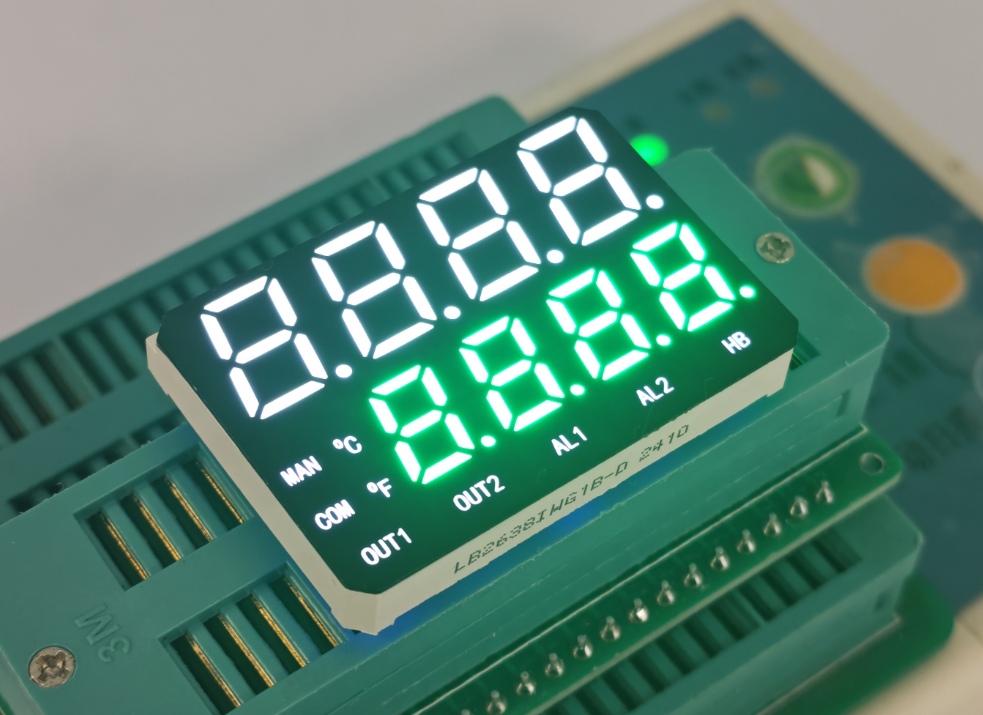

Color Selection: Why White and Pure Green Excel Outdoors

Eye response peaks in green wavelengths. Pure Green cuts through glare best for most people. Ultra Bright White also stands out sharply against black backgrounds. It fits premium kitchen gear and control boxes. LIGHTBO builds custom runs in these colors after outdoor trials. Scooter makers switched to our white segments after riders complained red ones washed out at 5 meters on sunny streets.

LIGHTBO: Engineering Superior 7-Segment LED Display Solutions

LIGHTBO started in 2006 in Shenzhen. We focus on steady improvement and solid quality under the idea “Pursuing Excellence, Building Success Together.”

Advanced Manufacturing and Quality Control at LIGHTBO

Consistent parts come from tight control. LIGHTBO runs modern auto lines and follows strict steps from start to pack. The plant holds ISO 9001 papers. Our in-house lab runs heat, UV, and burn-in checks. Every batch meets RoSH rules. Segments keep rated mcd after hundreds of hours under test lamps that mimic years of sun exposure.

Optimized Material Science for Sunlight Readability

Cheap epoxy yellows or clouds in UV light. LIGHTBO picks top-grade resins and phosphors. Colors stay true season after season. The design crew shapes inner cavities so most light heads straight to the viewer. Less waste means higher effective brightness on the front face.

The Importance of Customized Solutions for Specific Environments

No two jobs match exactly. A fridge panel in a bright kitchen window needs different specs than a charging station out on the street.

Developing Customized 7-Segment LED Display Modules

Standard stock covers many uses, but special cases need tailored parts. LIGHTBO builds exact matches. Send pin layout, height, or brightness targets. Our machine shop and engineers turn ideas into working samples fast. Clients cut overall costs by getting parts that drop straight into housings without extra shields or filters.

Tailoring Brightness and Housing for Industrial and Home Applications

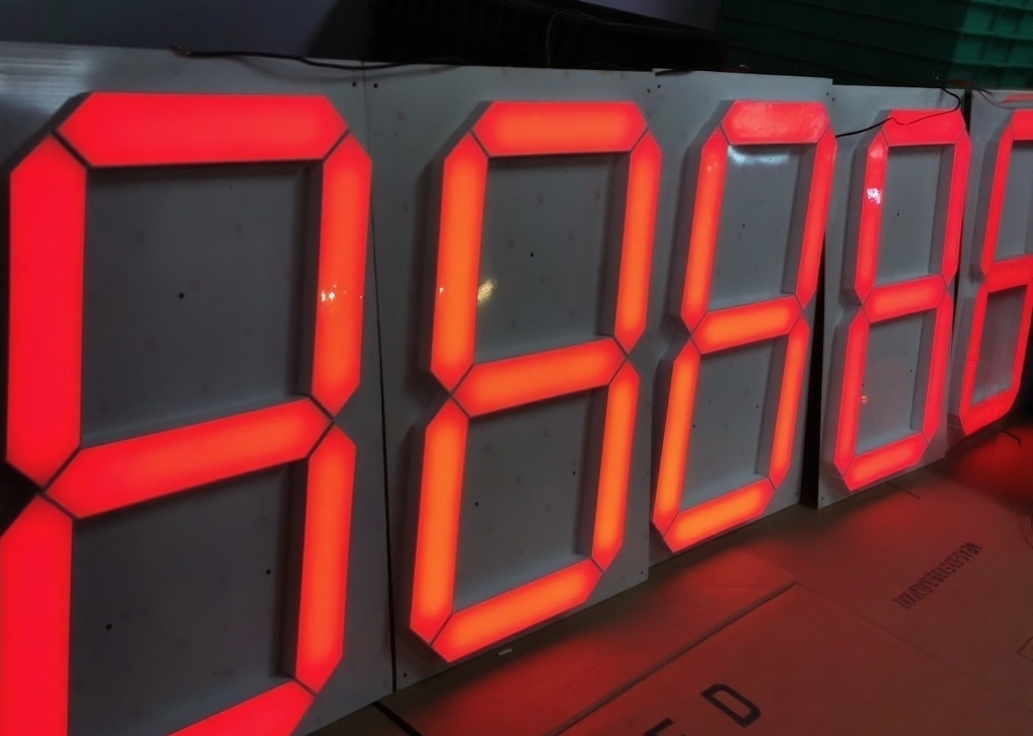

Past runs include bright white units for oven fronts that read clearly from across the room on sunny afternoons. Multicolor setups went into UPS boxes showing battery levels outdoors. New energy projects got rugged modules for scooter dashboards. Drive current tweaks and segment picks push the readable range well past common parts. We also offer outdoor LED segment display for use in automatic monitoring systems of sluice gates and pumping stations, displaying key parameters such as water level and power generation.

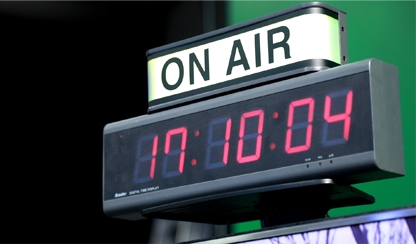

Practical Applications and Performance Metrics

7-Segment LED Displays fit everywhere from home gear to growing new energy setups. LIGHTBO parts show up in ovens, meters, and charging spots.

From Smart Appliances to New Energy Charging Stations

Charging piles sit outside year-round. Drivers need clear readouts from a few steps back in any weather. LIGHTBO modules keep digits sharp from 4-6 meters in midday sun. High-end fridges and ranges use slim, bright versions. Cooks glance at temps from the other side of the kitchen without squinting through window glare.

Estimating Distance: A Guide for Engineers and Designers

Plan for the harshest light your product will see. Outdoor gear benefits from digits 25% taller than indoor picks or our high-brightness line. A standard 0.5-inch (12.7mm) LIGHTBO display with strong contrast stays readable from 3-5 meters in full sun. Double the height, and the range stretches to 8-10 meters on clear days.

Conclusion: Choosing the Right Partner for Outdoor Display Success

Picking a sunlight-ready 7-Segment LED Display shapes how users see your product. LIGHTBO has led the field since 2006 with custom, dependable parts that handle tough light. Automated lines and skilled staff deliver displays that keep information visible when the sun is strongest. Contact LIGHTBO to explore high-brightness 7-segment displays designed for real sunlight conditions.

FAQ

Q: What is the best color for a 7-Segment LED Display to be used in direct sunlight?

A: “Ultra Bright White” and “Pure Green” offer higher contrast and fall within the spectrum where the human eye is most sensitive, making them easier to read against the glare of the sun.

Q: How does LIGHTBO ensure the quality of its displays for outdoor use?

A: We are ISO 9001 certified and perform reliability testing to ensure our products withstand environmental stress. Our displays are also RoHS compliant and undergo supplier capability assessments.

Q: Can I get a 7-Segment LED Display with a specific digit size for my project?

A: We offer a full range of standard sizes from single to six digits, but our internal design team can work with you to create a customized module tailored to your unique application.

Q: What industries typically use LIGHTBO’s high-brightness 7-segment displays?

A: Our products are widely used in the home appliance industry, the new energy sector, and industrial instrumentation where high reliability and sunlight readability are essential.
