14 and 16 Segment Displays: The Best Solution for Legible Digital Signs

In today’s fast-changing world of industrial design and consumer electronics, how clearly a device talks to its user often decides if the product succeeds. While basic numbers have long worked well on standard 7-segment displays, many current uses now call for showing full letters and numbers together. This is where 14 and 16-segment displays come in. People often call them alphanumeric displays. They strike a good balance between clear reading, simple build, and nice looks. For companies that need dependable, strong parts, LIGHTBO offers a wide selection of these displays. Each one meets tough worldwide standards.

Understanding Alphanumeric Displays: Beyond the 7-Segment Limit

The move from a 7-segment display to one that handles letters and numbers happens because users need better clarity on digital signs. A regular 7-segment display does great with digits. However, it has real trouble with the English alphabet. Many letters end up looking unclear, and that can cause mistakes in important settings.

Why 14 and 16 Segments are Essential for Text Legibility

Alphanumeric displays fix this problem by adding slanted and upright bars to the usual figure-eight shape. A 14-segment display, sometimes known as the “Union Jack” type, makes all 26 uppercase Latin letters clear. It also handles several symbols well. For cases that need even finer detail, 16-segment displays split the top and bottom horizontal bars. This gives more room to form tricky letters and creates smoother shapes. With these extra parts, letters like “M,” “W,” “S,” and “Z” stand out right away. That matters a lot in machines where workers must read data fast for safety or smooth operation.

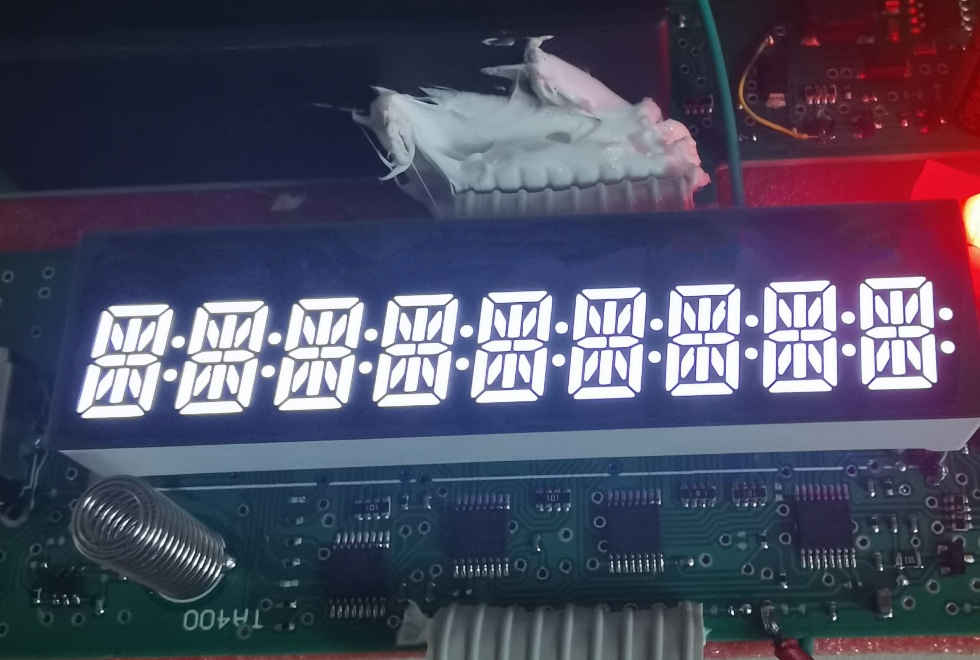

Exploring the 14-Segment LED Display: Precision and Efficiency

LIGHTBO has built its 14-segment designs to be both easy to read and very tough. These units feature a “White Segment, Black Surface” look. That setup creates a strong contrast, which helps people see the characters in different light levels.

Technical Deep Dive: The LIGHTBO LB30541IUR1B Model

One standout product is the three-digit, 0.54-inch 14-segment LED display. It uses a common anode setup. Engineers built it mainly for instrument panels where room is tight, but clear views are a must. The digits stand 13.8mm tall. The whole unit measures just 37.8 x 21.1 x 7.9mm. It fits neatly into slim, current designs without losing sight of the information.

Performance Metrics and Reliability Standards

Good performance comes from steady results day after day. The 14-segment LED display gives off super bright red light with a peak wavelength of 625–630nm. That makes the glow sharp and easy to spot. Our production line keeps luminous intensity between 25 and 35 mcd. It runs on a low forward voltage of 1.8V to 2.3V. These displays last about 80,000 hours. They work in temperatures from -40 to +120°C. So they hold up in hot factory ovens or cold outdoor booths.

The 16-Segment LED Display: The Ultimate for Complex Symbols

When projects call for extra detail, the 16-segment LED display becomes the top pick. It serves as the preferred option for upscale audio gear and complex factory controls.

Enhanced Graphics and Alphanumeric Flexibility

The added bars in a 16-segment setup allow for nicer letter shapes. This helps a great deal in queue systems at banks or screens that show interest rates. Those places need a clean, professional appearance. LIGHTBO’s 16-segment displays deliver steady operation and good power use. Even with more bars to light, they draw little energy.

Feature Spotlight: LIGHTBO’s 0.8-inch Alphanumeric Solutions

Our 0.8-inch (20.32mm) single-digit 16-segment displays show our focus on quality. Buyers can get them in colors beyond basic red, such as bright amber, blue, green, and pure white. Take the super bright amber version. It works at a wavelength of 585–595nm and puts out 60–70mcd per segment. That level of brightness works well even under strong sunlight. Just like our 14-segment line, these units match common ICs and mount easily on circuit boards. That cuts down assembly time and costs for customers.

Key Advantages of Integrating LIGHTBO Alphanumeric Displays

Picking the right part goes beyond raw specs. It involves the lasting value it brings to the finished item. LIGHTBO builds its work around three main strengths: quality, options for changes, and fair pricing.

Superior Luminous Intensity and Uniformity

Many cheaper segment displays suffer from uneven light across bars. LIGHTBO handles this with modern automatic equipment and tight checks at every step. Our units show “continuous uniform segments.” An “A” looks as bright and even as a “V.” This evenness proves important in multimedia devices or currency exchange boards in banks. There, the look of the screen reflects the company’s reputation.

Low Power Consumption and Long-Term Stability

With growing attention to energy savings, our alphanumeric displays run on low current. They keep a strong brightness while using a few milliamps. That helps portable gadgets last longer on batteries. It also lowers the heat in closed factory boxes. All our items follow RoHS rules. They meet global standards for safety and the environment.

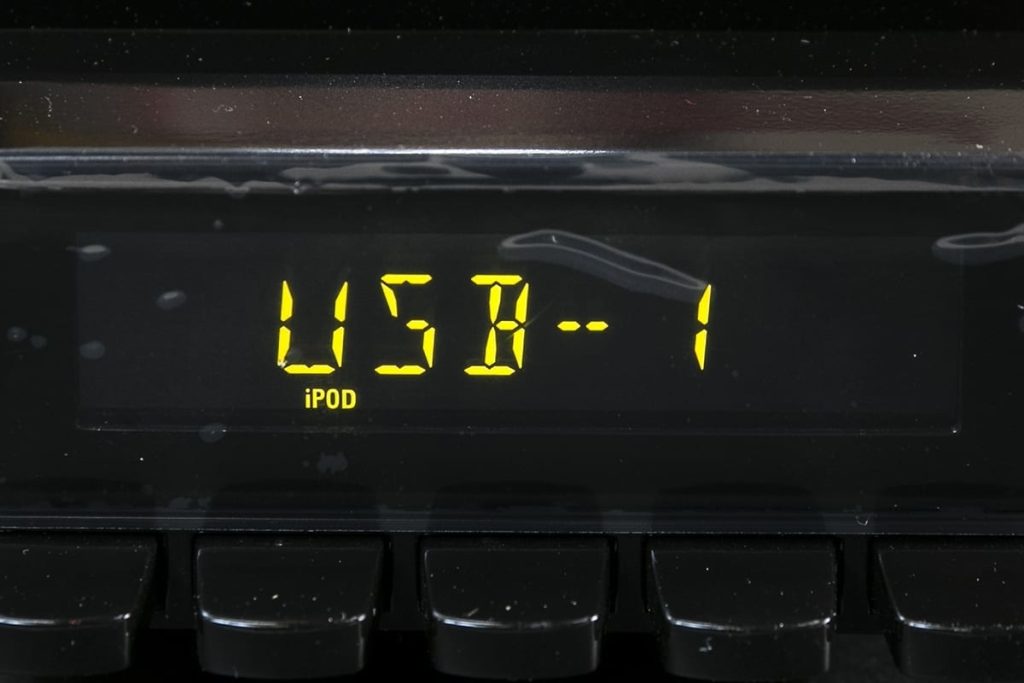

Diverse Applications Across High-Demand Industries

The wide use of LIGHTBO’s 14 and 16-segment displays makes them key parts in many fields.

Industrial Instrumentation and Process Control

In factories, items like reliability testers, temperature units, and programmable logic controllers depend on our displays for live updates. The broad temperature range (-40 to +120°C) keeps them working in harsh spots. Their steady output means vital numbers always stay readable.

Home Appliances and Automotive Dashboards

For products people use at home, looks count as much as function. Our displays appear in air conditioners, microwave ovens, and water heaters. In cars, they show up on dashboards, fuel gauges, and parking aids. The super bright light lets drivers see clearly in the sun or at night.

LIGHTBO: Your Expert Partner in LED Manufacturing

LIGHTBO started in 2006 and has grown into a leading name in LED displays. Our base sits in the Nanshan District, Shenzhen. We follow the idea of “Pursuing Excellence, Building Success Together.” The plant holds ISO 9001 certification. We use advanced automatic machines so every piece meets our strict quality marks.

We have our own skilled design group and modern workshop. These allow full OEM and ODM work. If you want a certain height, special surface color, or custom pins, LIGHTBO can team up to create exactly what you need. Our drive for new ideas and strong service has earned trust from major companies around the world.

Conclusion

When clear reading cannot be risked, 14 and 16-segment displays offer the right answer for digital signs. They bring the letter-and-number support that today’s devices require. At the same time, they keep the toughness and low power of LED tech. LIGHTBO is prepared to supply high-quality, tailored parts for your work. From our bright 0.54-inch 14-segment units to our flexible 0.8-inch 16-segment displays, we provide the sharp views your users expect.

FAQ

Q: What is the main difference between 14-segment and 16-segment displays?

A: A 14-segment display uses a single bar for the top and bottom, while a 16-segment display splits these bars, allowing for more detailed character shapes and improved font legibility.

Q: Can LIGHTBO provide customized colors and sizes for alphanumeric displays?

A: Yes, we support OEM/ODM services. We offer various colors like red, green, blue, amber, and white, and can customize digit heights and surface colors based on your drawings.

Q: Are these displays suitable for outdoor or harsh environments?

A: Absolutely. Our displays feature an operating temperature range of -40 to +120°C and high luminous intensity, making them reliable for industrial and outdoor applications.

Q: What is the typical lifespan of a LIGHTBO segment display?

A: Our high-quality LED displays are designed for longevity, typically offering a lifespan of up to 80,000 hours under standard operating conditions.
