Advantages:

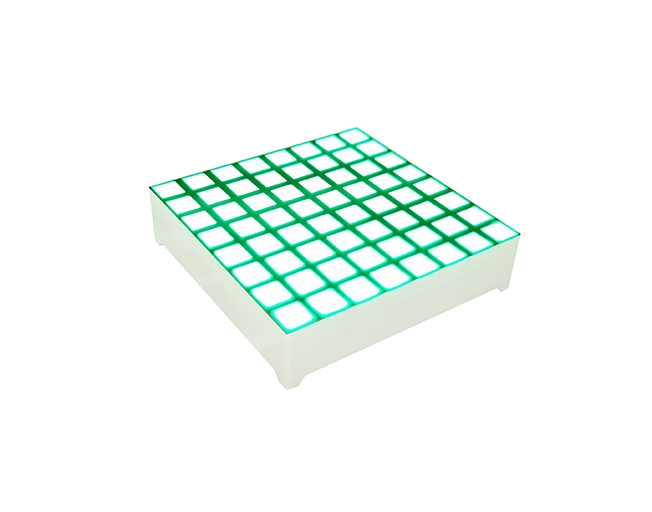

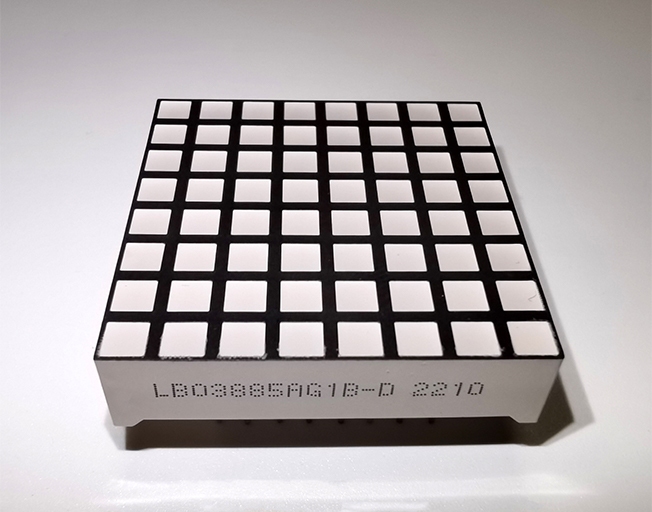

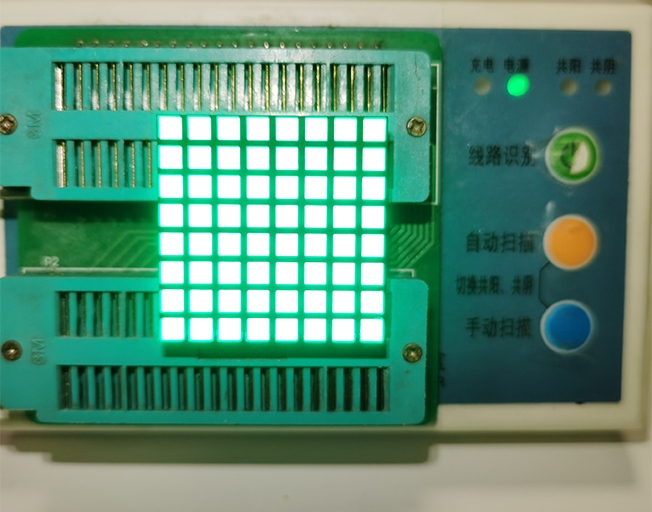

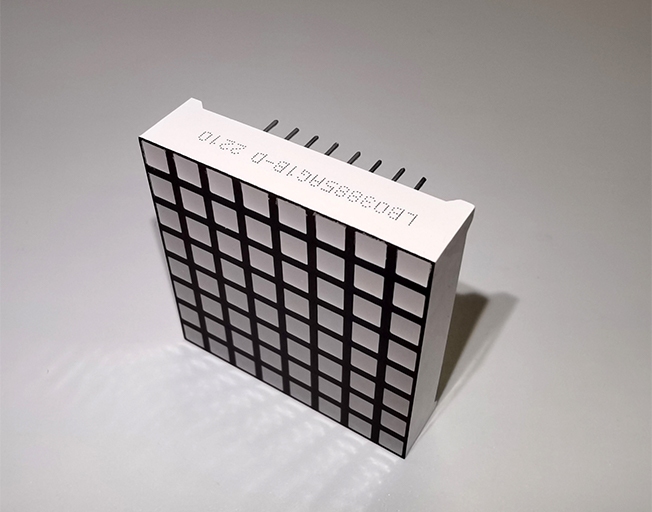

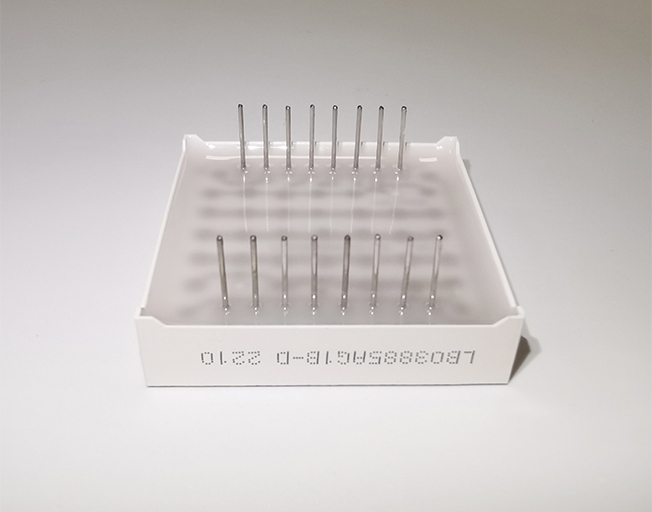

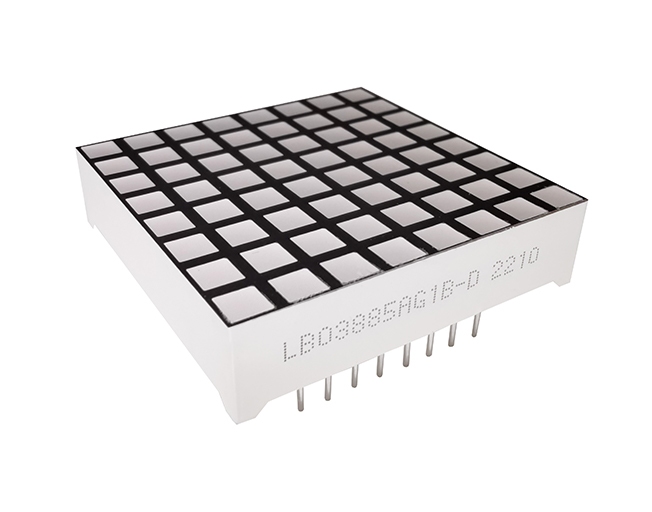

Pure Green 8×8 Square Dot Matrix LED Display Row Anode For Elevator Position Indicator
Code:Pure Green
|
Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=20mA |
3.0 |
/ | 3.5 | V |
|
Reverse Voltage |
Vr |
Ir=10uA |
/ | 5 | / | V |
|
Luminous Intensty |
Iv |
If=20mA |
200 |
/ |
220 |
mcd |
|
Spectrum With Of Half Value |
λ |
If=20mA |
/ | 20 | / |
nm |
|
Wavelength |
Dλ |
If=20mA |
525 |
/ | 530 |
nm |
Absolute Maximum Ratings(Ta=25℃)
|
Parameter |
Symbol |
Ratings |
Unit |
|
Forward Current(per dice) |
Ipm |
20 |
mA |
|
Reverse Voltage(per dice) |
Vr |
5 |
V |
|
Power Dissipation(per dice) |
Pm |
80 |
mW |
|
Operating Temperature Range |
Topr |
-40~+120 |
℃ |
|
Storage Temperature Range |
Tstg |
-40~+120 |
℃ |
|
Solder Temperature(3 sec) |
Th |
260 |
℃ |
LED working lifetime 80,000hrs, Absolute Maximum Rating at Ta=25℃
If you are interested in any product, please contact us. We will introduce our products to you in more detail
