Product Description:

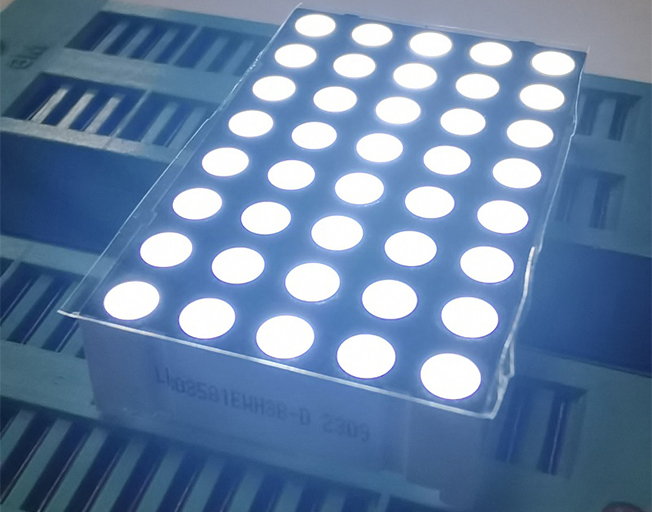

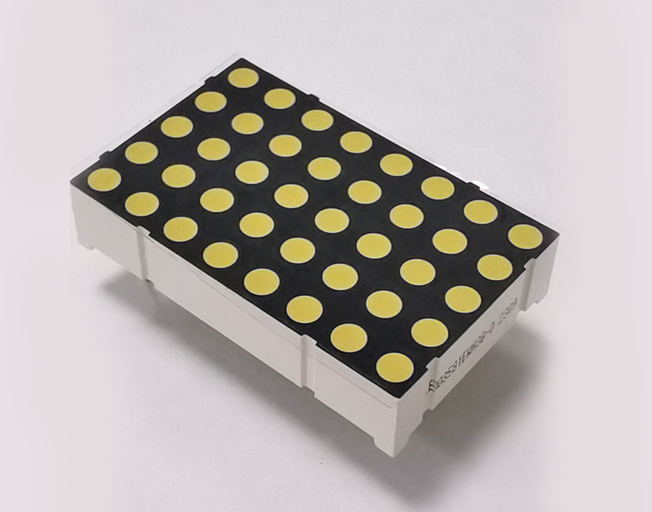

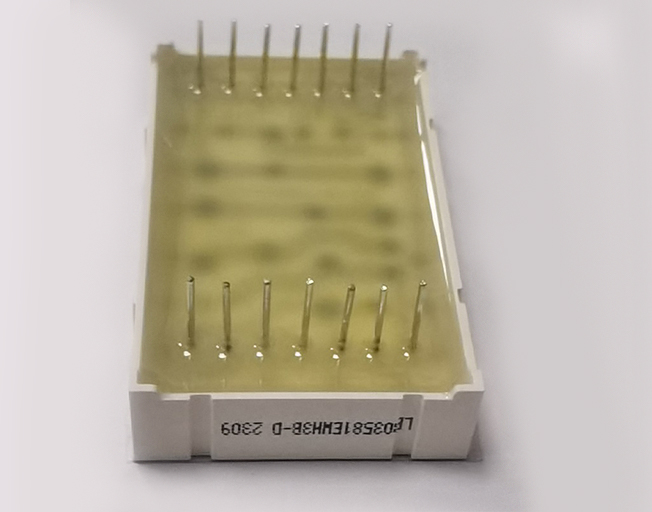

Enhance visibility and clarity in elevator systems with our Pure White 3mm 5×8 Dot Matrix LED Display. Designed specifically for lift position indicators, this high-quality display ensures bright, uniform illumination and precise numeric representation. Its compact 3mm LEDs and 5×8 dot matrix configuration make it ideal for clear floor numbering and directional indicators.
Product Name: Pure White 3mm 5×8 Dot Matrix LED Display for Lift Position Indicato
Key Features:
Pure White LEDs: Provide bright, uniform illumination for high visibility in elevators and enclosed spaces.
5×8 Dot Matrix Layout: Allows clear numeric and simple alphanumeric displays.
Compact 3mm LED Size: Ideal for fitting into elevator panels without occupying excessive space.
Durable and Reliable: Built with high-quality LEDs for long-lasting operation.
Low Power Consumption: Energy-efficient design suitable for continuous operation.
Easy Integration: Compatible with common microcontrollers and driver circuits.
Technical Specifications:
LED Color: Pure White
Dot Matrix: 5×8 (Rows × Columns)
Dot Size: 3mm
Forward Voltage: 3.0 – 3.2V
Forward Current: 20mA (typical)
Viewing Angle: 120°
Operating Temperature: -40°C to +85°C
Lifespan: 50,000+ hours
| Parameter | Symbol | Ratings
| Unit
|
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(≤3 seconds) | Th | 260 | ºC |
Absolute Maximum Ratings(Ta=25ºC)
Code:Ultra Bright White -WH
| Parameter | Symbol | Condition
| Min
| Typ
| Max
| Unit
|
| Forward Voltage | Vf | If=10mA | 2.8 | / | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | / | / | V |
| Luminous Intensty | Iv | If=10mA | 120 | / | 140 | mcd |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
| Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | / | 0.30,0.33 | / |
Applications:
Lift/Elevator Position Indicators
Numeric Display Panels
Industrial Control Panels
Digital Counters and Scoreboards
DIY Electronics Projects
